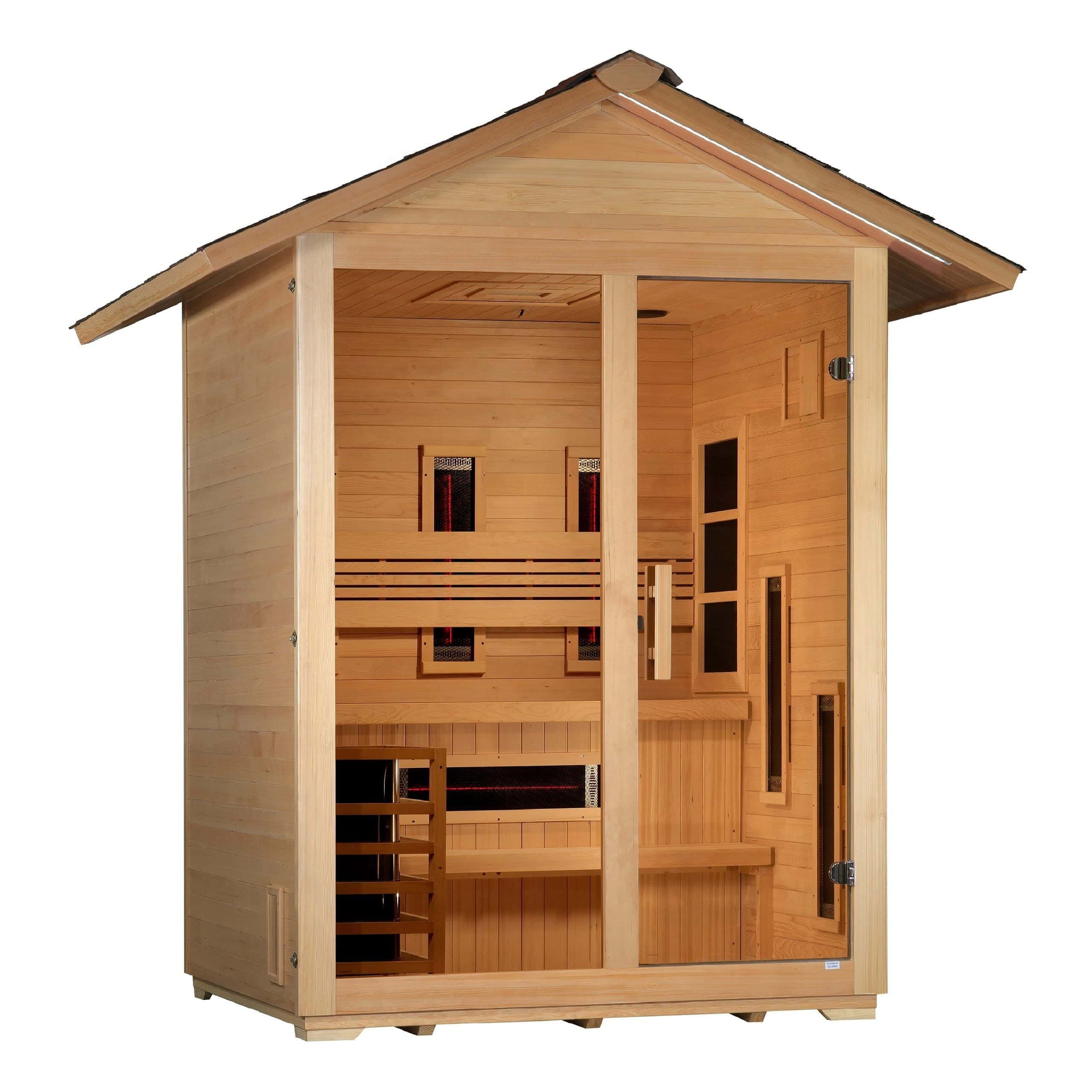

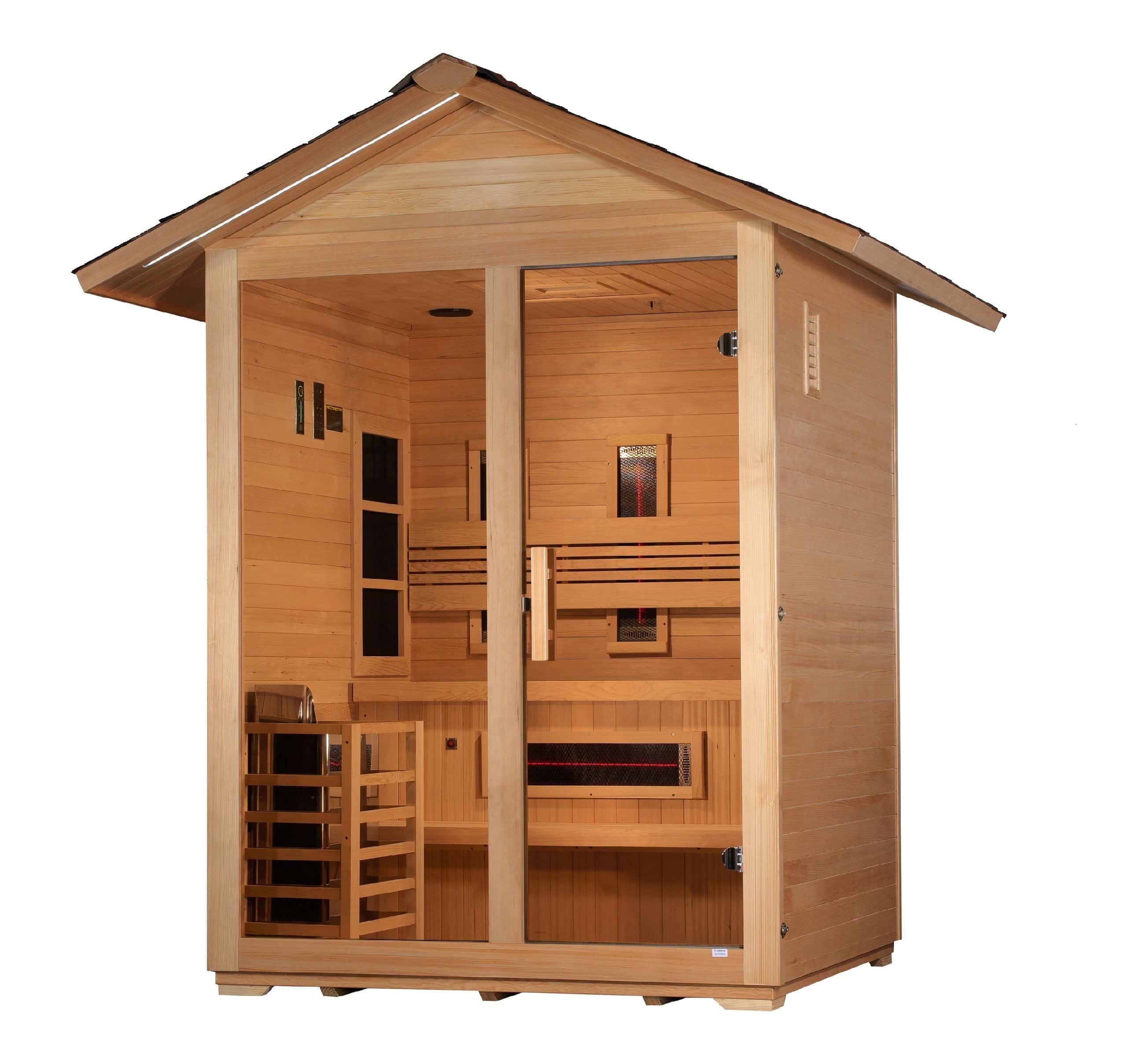

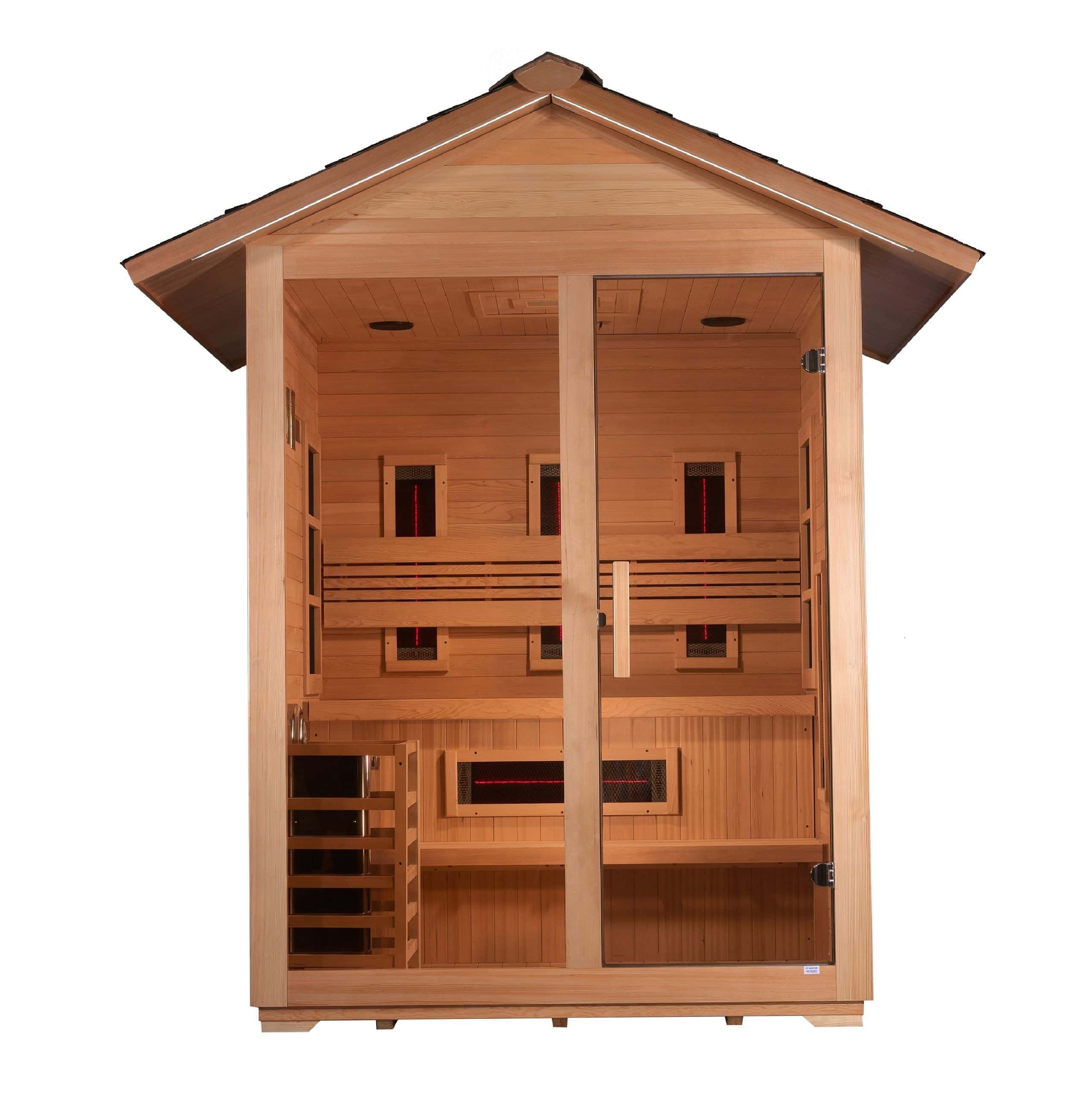

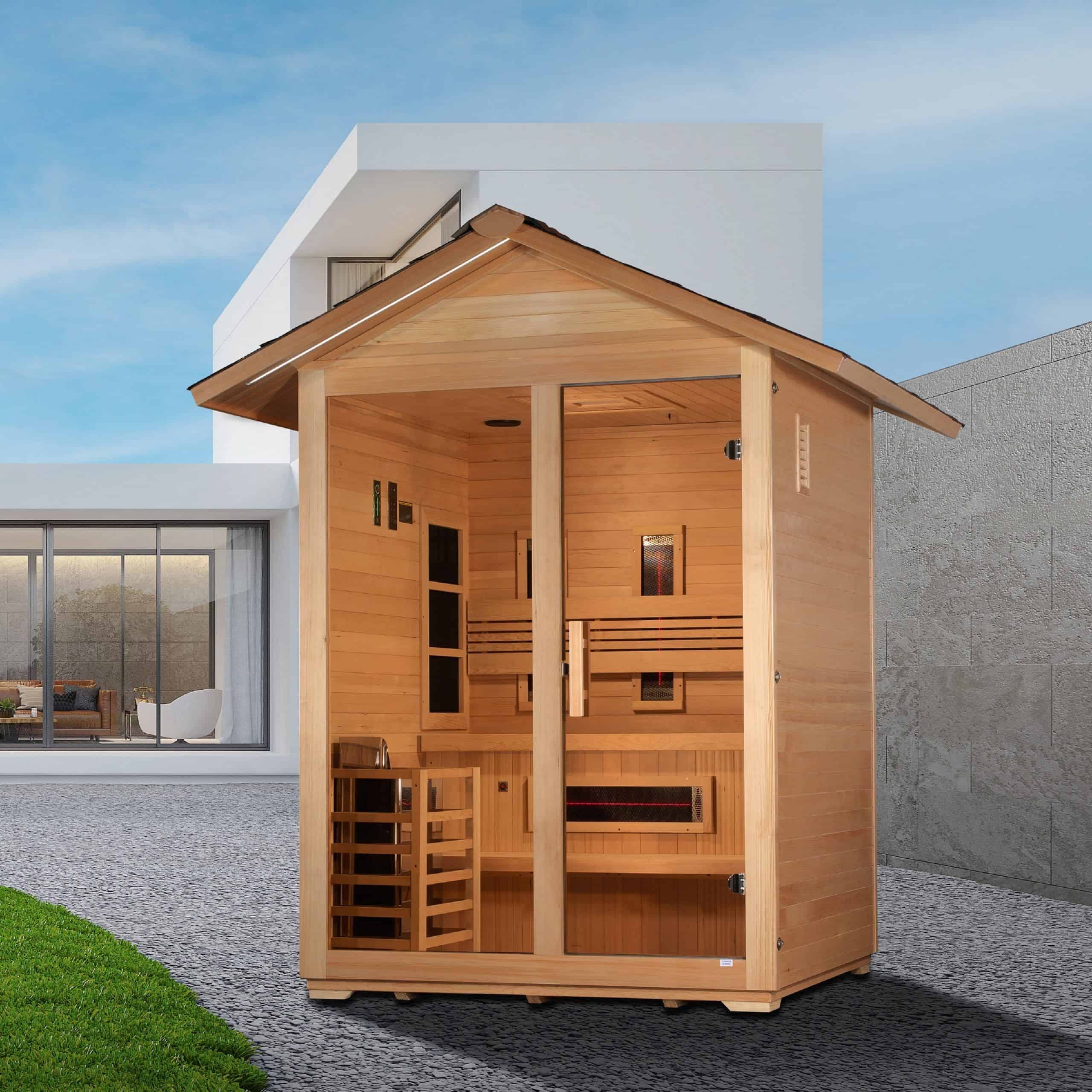

The Golden Designs Carinthia (model GDI-8123-01) is a 3-person hybrid outdoor sauna in Canadian Hemlock. It combines a Harvia 8kW traditional sauna stove and a PureTech™ full spectrum infrared system in one cabin, allowing either traditional steam sessions or lower-temperature infrared sessions. The two systems operate one at a time.
How the Hybrid Works

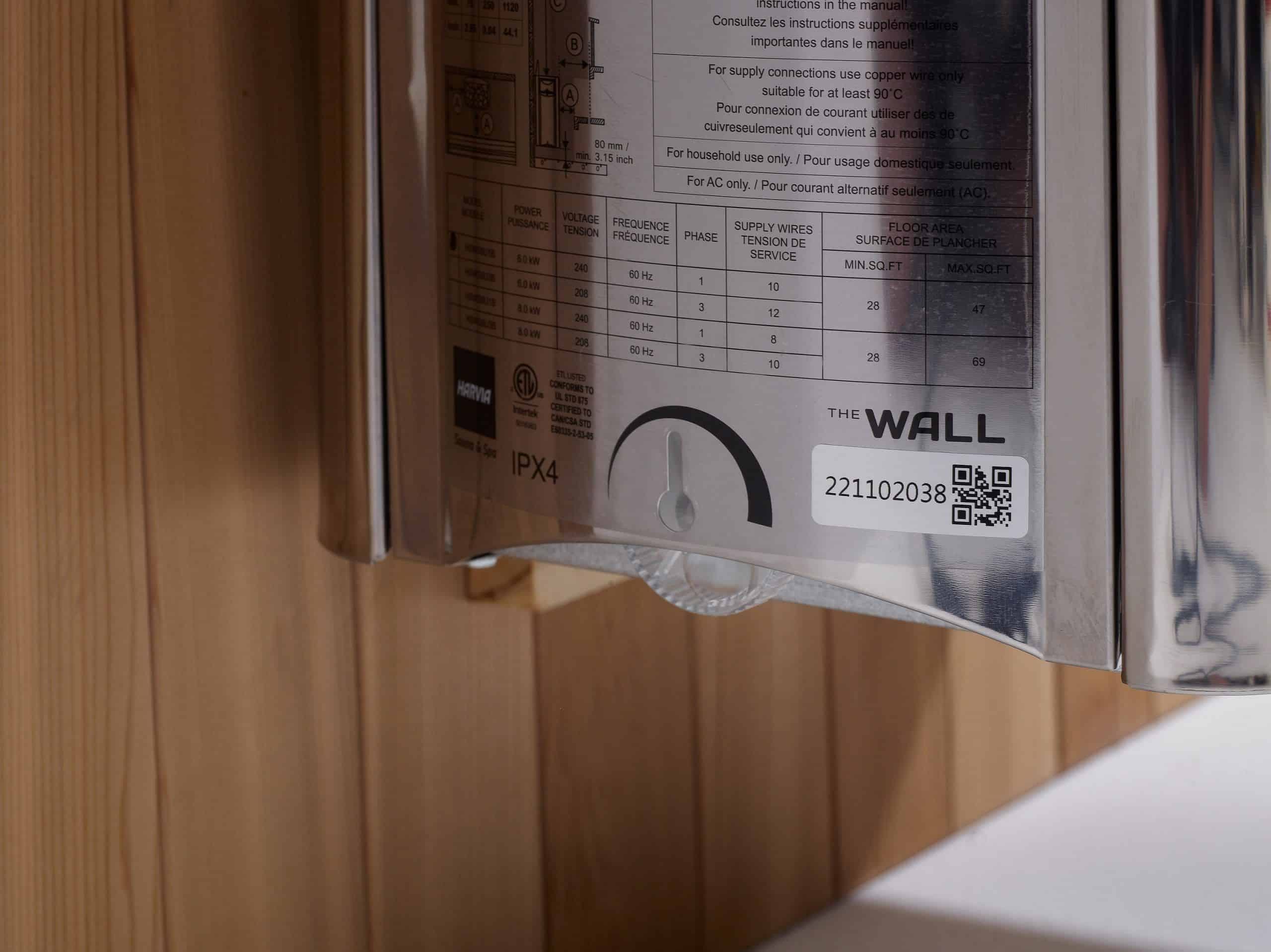

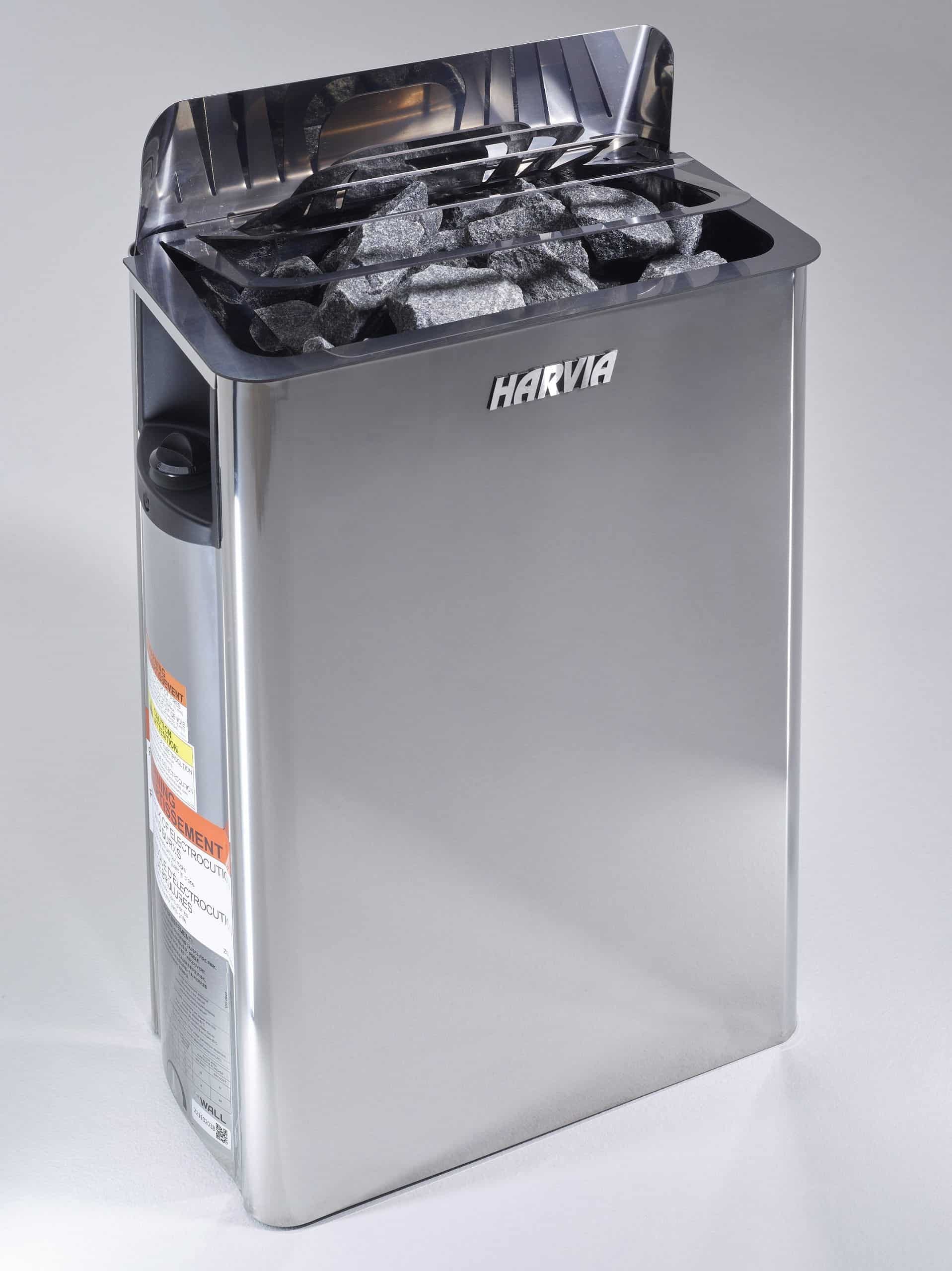

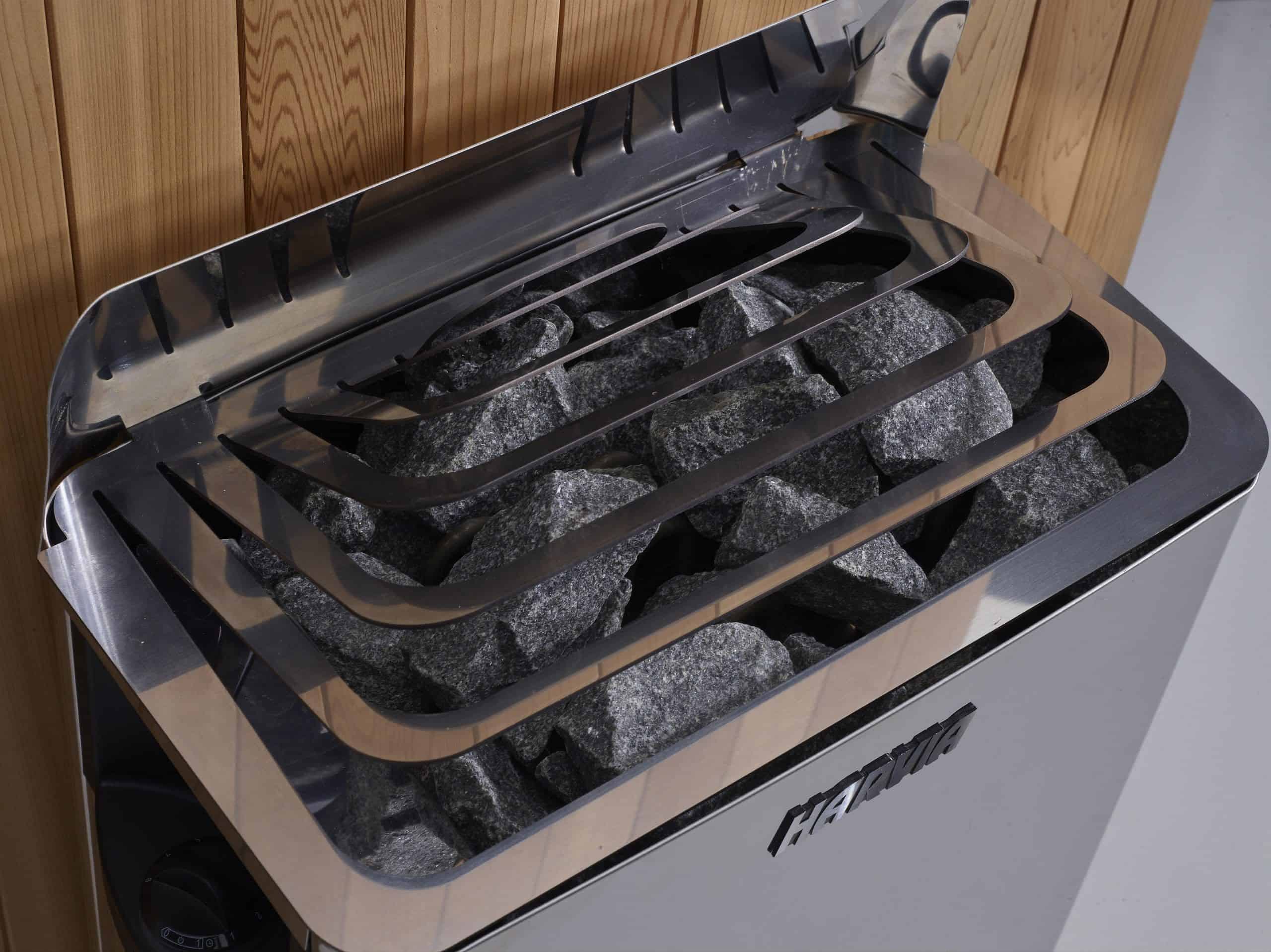

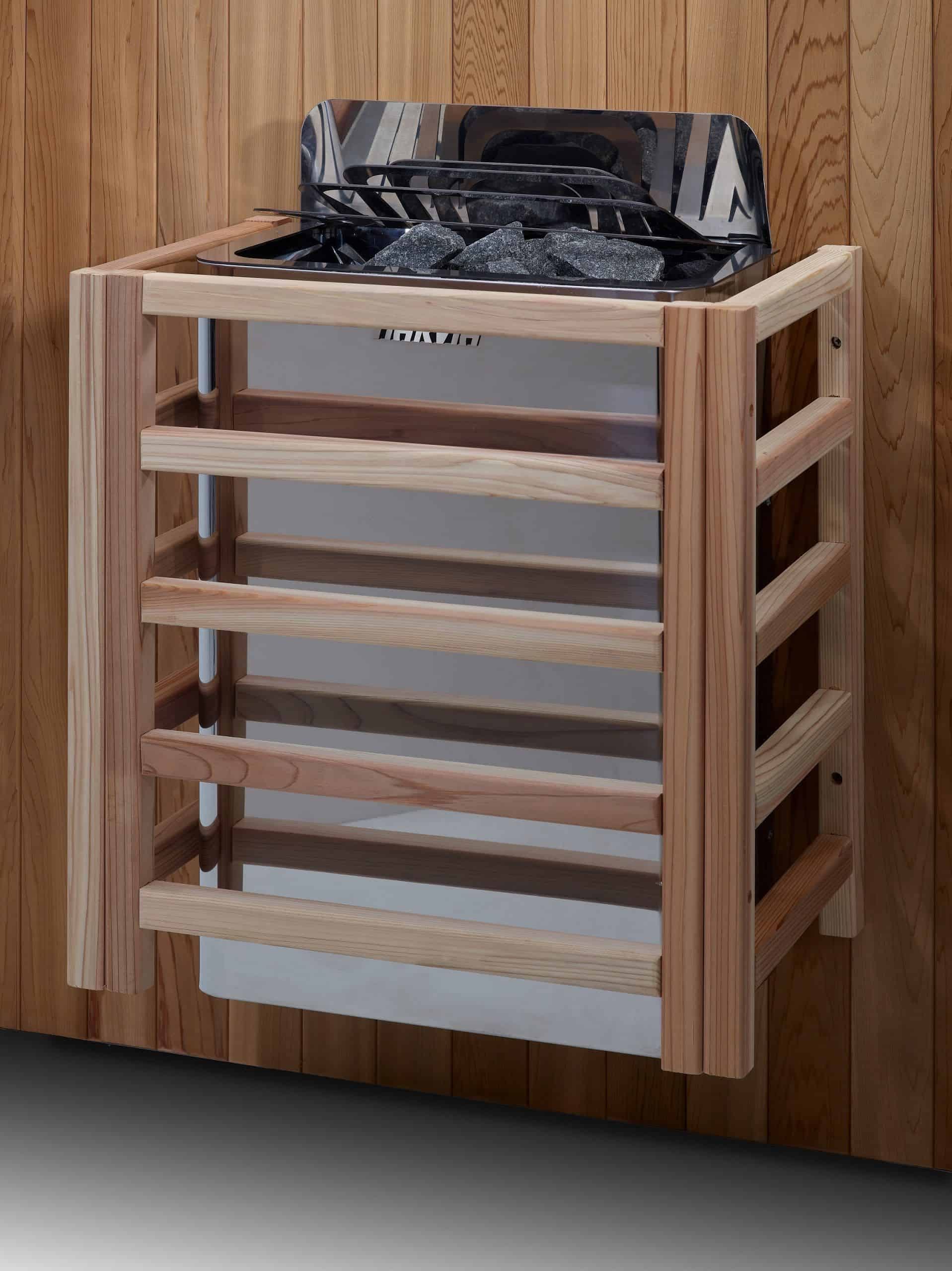

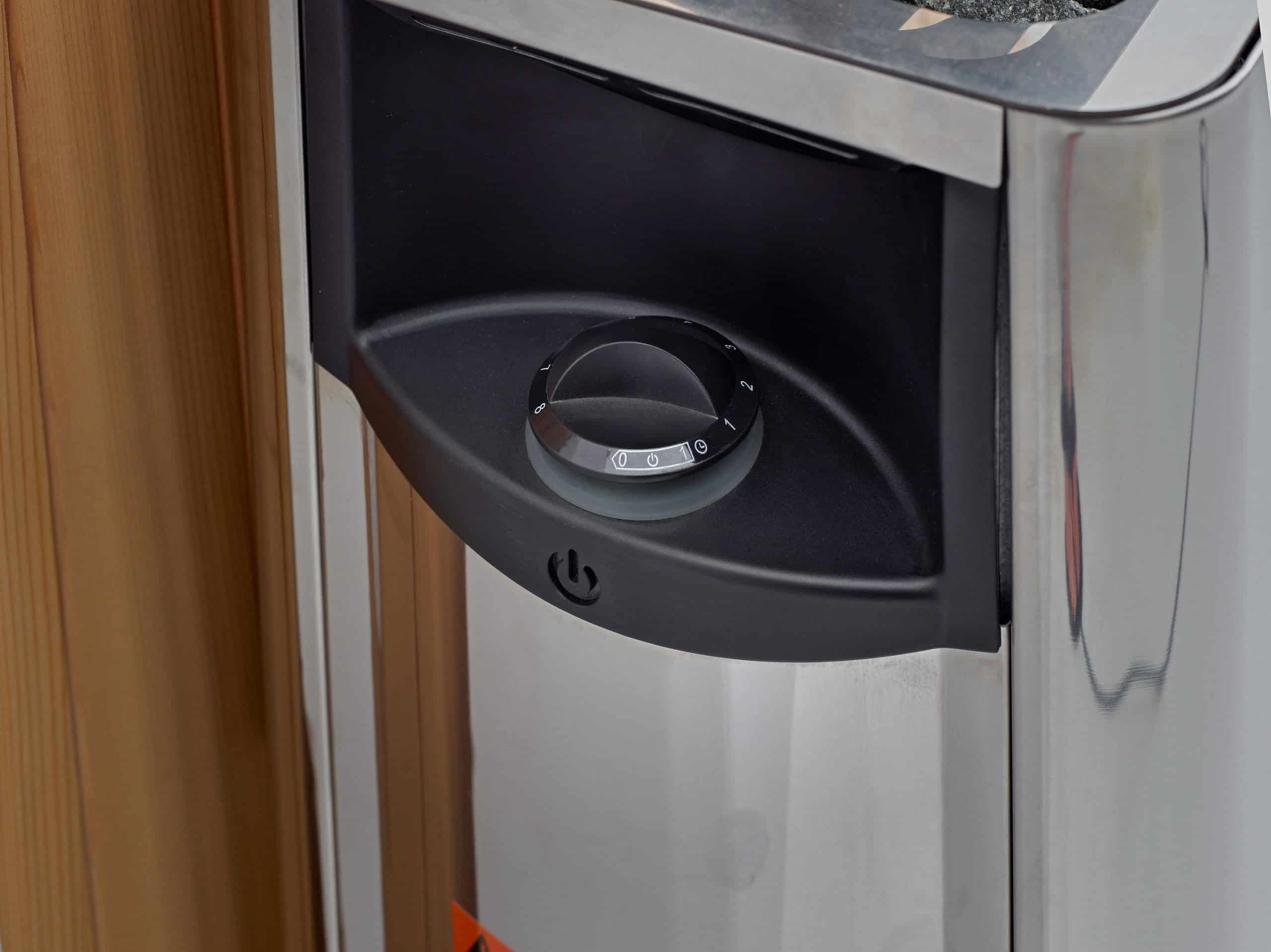

The traditional side is a Harvia 8KW sauna stove with built-in controls, usable at any exterior temperature and reaching standard steam-sauna temperatures. The infrared side uses eight emitters: two carbon PureTech™ near zero EMF heating panels and six near infrared heating elements. Golden Designs specifies infrared mode for use when the outdoor temperature is 45°F or warmer, because an outdoor cabin loses heat faster than the panels can replace it in freezing conditions. The stove has no such limitation.
Construction and Dimensions
The Carinthia is natural reforested Canadian Hemlock with a waterproof stain on the exterior. Exterior dimensions are 84.1″ × 73.6″ × 97.4″ with the roof overhang (63″ × 56.7″ at the walls); interior is 59.2″ × 53.2″ × 78″, with three-person bench capacity. The door is bronze privacy tempered glass. Assembled weight is 715 lbs; shipping weight is 925 lbs, delivered curbside on a pallet.
Included Features
Interior chromotherapy color lighting, a lit backrest with accent lighting, an interior LED control panel with built-in FM station and Bluetooth connection, performance speakers, and traditional accessories (sandglass timer, bucket, and scoop) are all included.
Electrical Requirements
The hybrid requires 240V / 40AMP service run to the sauna location for the stove and full spectrum system, installed by a certified electrician. This wiring is a cost to account for when comparing the Carinthia with plug-in indoor infrared saunas. Site preparation is a level, load-bearing pad of roughly 7′ × 6.5′.
Comparison With Related Models
- Carinthia (GDI-8123-01) — 3-person outdoor hybrid in Canadian Hemlock.
- Loviisa — a higher-specification outdoor hybrid with an all-weather exterior and Canadian Red Cedar interior.
- Soria — the same hybrid concept sized for indoor installation.
Golden Designs Carinthia — Frequently Asked Questions
Can the stove and infrared run at the same time?
No. One mode operates per session. In practice, users select stove mode for traditional sessions and infrared mode for lower-temperature sessions in warmer weather.
Why is infrared limited to 45°F and above?
Infrared panels heat the body rather than the air; in freezing conditions an outdoor cabin loses heat faster than the panels replace it. The Harvia stove is not limited this way.
What site preparation is required?
A level, load-bearing pad of about 7′ × 6.5′ and the 240V/40A circuit. We can provide the electrical spec sheet for your electrician.
Is the warranty included?
Yes. Norse Steam is an authorized Golden Designs dealer; the full manufacturer warranty applies.
Contact us for the electrical spec sheet and a delivery estimate to your area.
