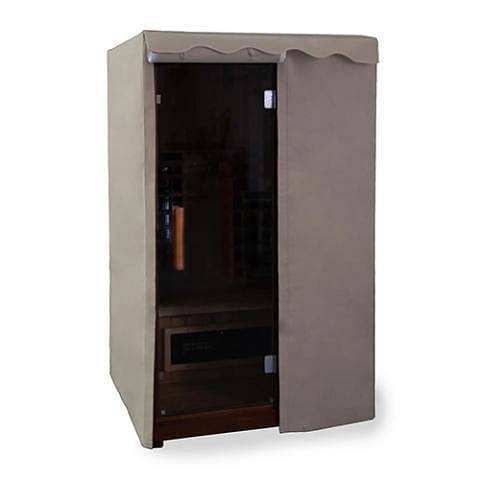

Finnmark FD5 Waterproof Sauna Cover, 75"x64"x83", Avena (+$1,398.00)

Sauna Accessories & Maintenance

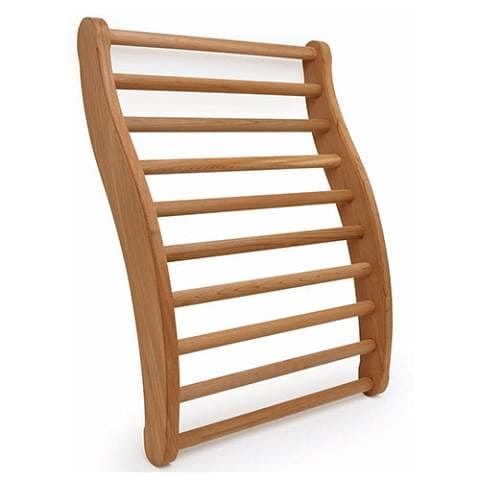

Finnmark Designs Ergonomic Cedar BackRest
Canadian Red Cedar Ergonomic S-Shape Sauna Backrest (+$89)

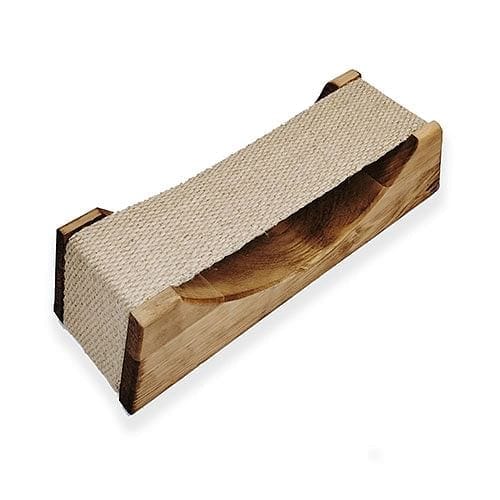

SaunaLife SaunaGear Headrest
Wooden Sauna Headrest w/Cloth Neck Support (+$39)

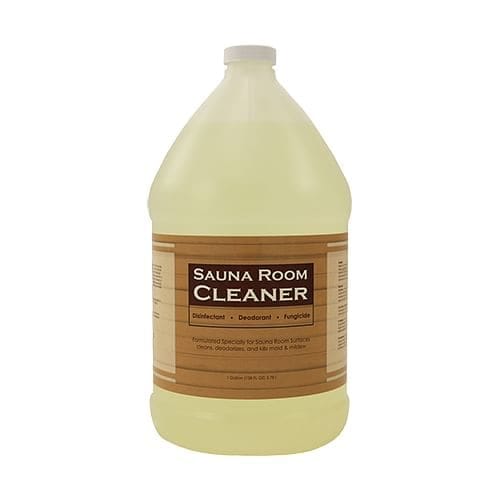

Sauna Room Cleaner Gallon
Sauna Room/Wood Cleaner, Concentrated, 1-Gallon Container (+$30)
Sauna Room Cleaner

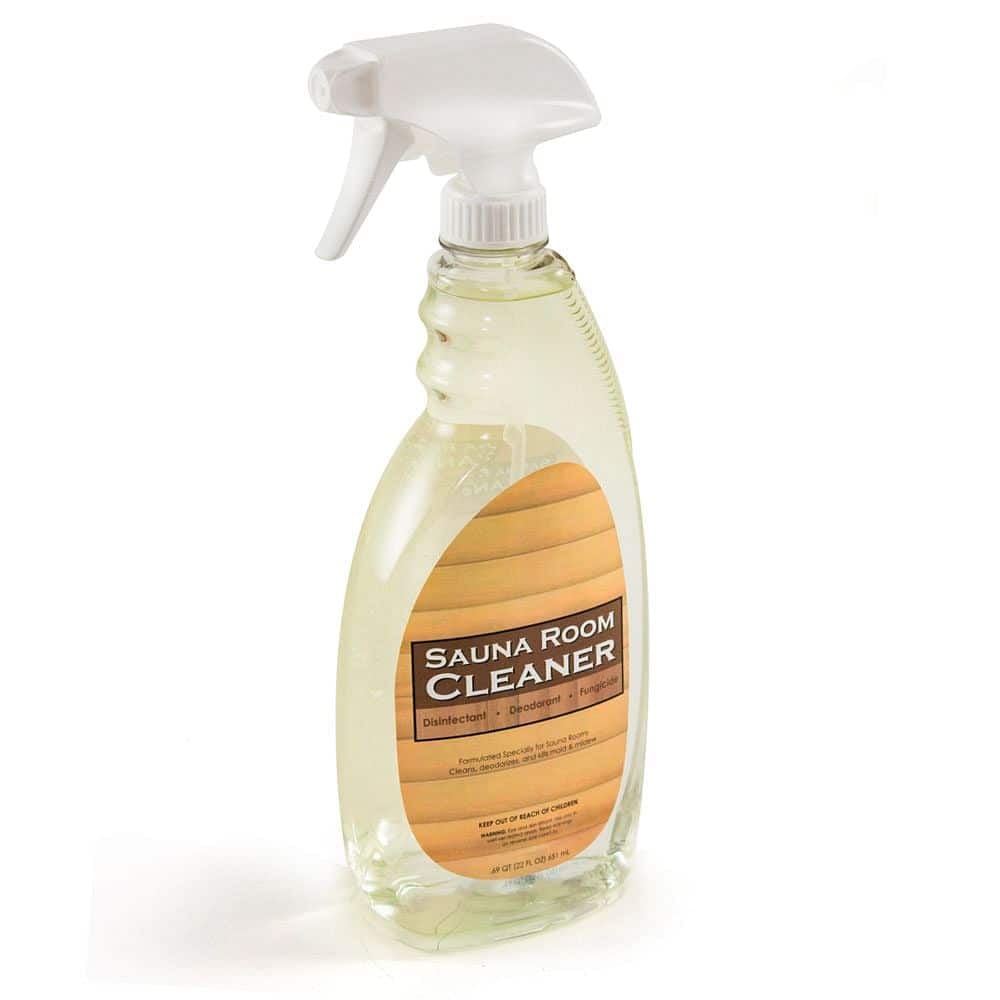

Sauna Room/Wood Cleaner, 22-Ounce Spray Bottle (+$15)

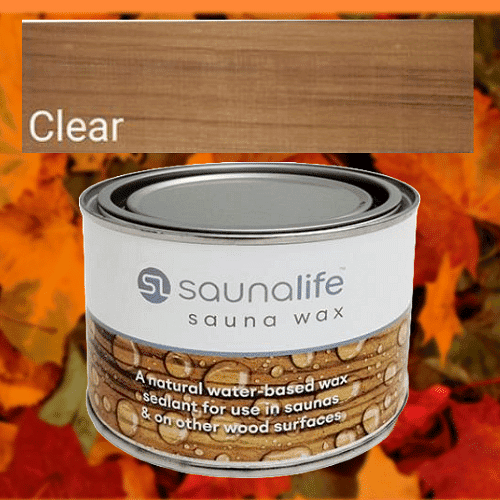

Clear SaunaLife Sauna Wax
Sauna Wood Wax, 15.2oz Clear (+$25)
White SaunaLife Sauna Wax

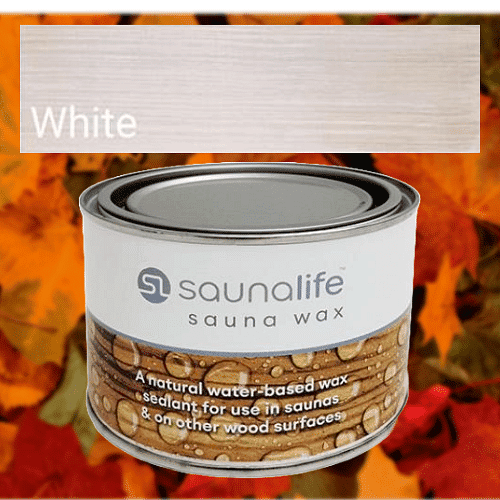

Sauna Wood Wax, 15.2oz White (+$25)

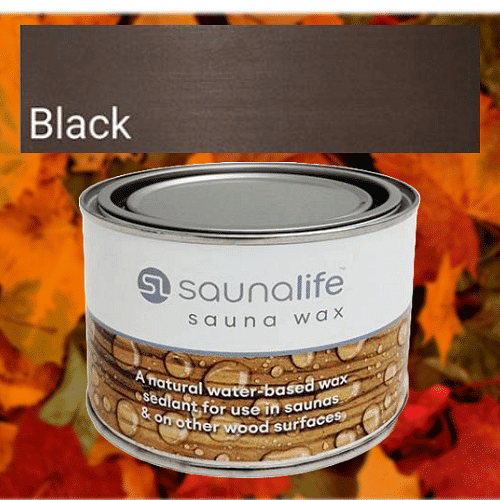

Black SaunaLife Sauna Wax
Sauna Wood Wax, 15.2oz Black (+$25)

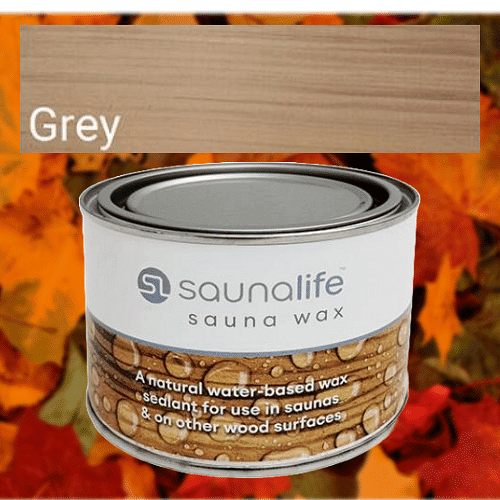

Grey SaunaLife Sauna Wax
Sauna Wood Wax, 15.2oz Grey (+$25)

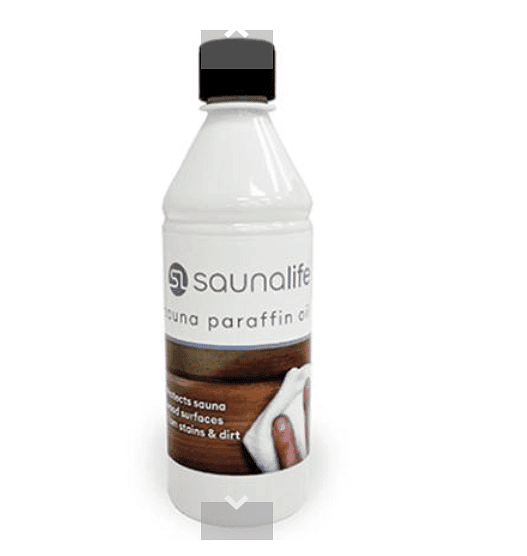

SaunaLife Sauna Paraffin Oil Odorless Sauna Wood Oil 500ml (16.9 oz)
Paraffin Oil Odorless Sauna Wood Oil 500ml (16.9 oz) (+$26)

Kolo Buckets

Black Sauna Bucket
Kolo Bucket and Ladle, curved Handle, Bamboo/Aluminum Black (+$150)
White Kolo Sauna Bucket
Kolo Bucket and Ladle, curved Handle, Bamboo/Aluminum White (+$150)
Product price: $8,995.00
Total options:
Order total:

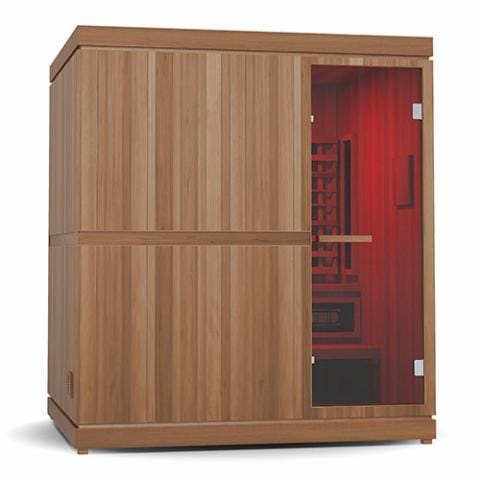

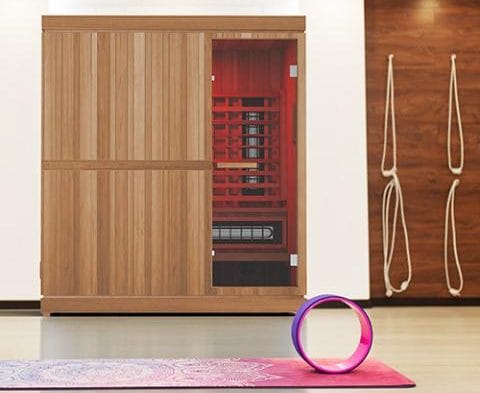

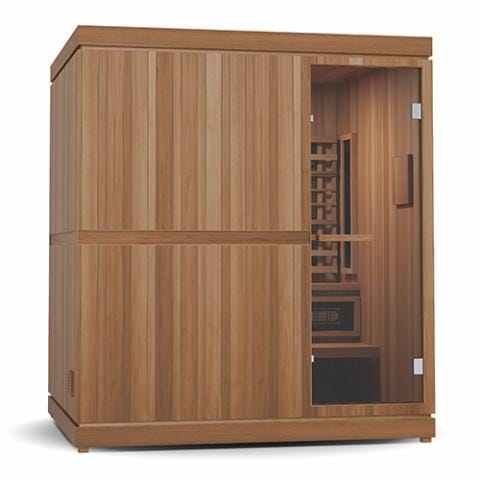

Finnmark Designs FD-5 4-Person Infrared & Traditional Steam Sauna

Finnmark FD-5 Combination Sauna: family seating with a choice of bench levels

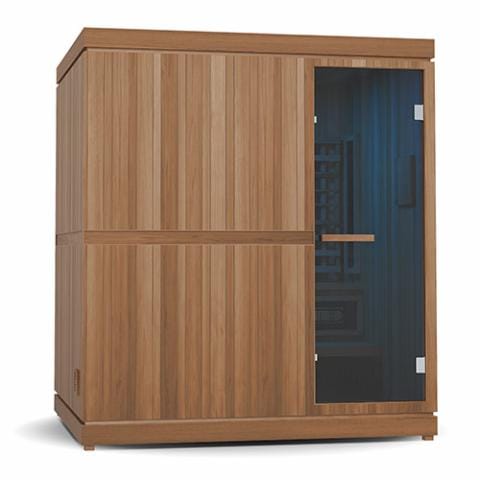

The Finnmark FD-5 Combination Sauna is an indoor combination sauna with infrared heaters and a traditional electric heater with stones. It seats four across upper and lower benches. The wall mounted Harvia heater is made in Finland and holds a large load of stones. Heat rises, making the upper bench the hottest spot and the lower bench the mildest. Pour water over the stones for steam. The cabin has cedar inside and heat treated aspen outside. Allow about 75 by 64 inches of floor space. It stands 83 inches tall, so measure your room and ceiling before choosing a spot.

An electrician must install separate 240 volt circuits: an outlet for infrared and a hard wired line for the Harvia heater. The heater and a box of stones come included. The Wi-Fi touchscreen lets you control the sauna from your phone. Add the optional KOLO bucket and ladle set, since neither comes in the box. Prefer infrared alone in a similarly wide cabin? See the Finnmark FD-3 Infrared Sauna. The Finnmark FD-5 Combination Sauna ships free from Norse Steam with No Sales Tax (except WY) and our 100% price match guarantee.

Health Benefits

Benefits of Infrared

  • The technology of the Spectrum Plus incoloy heaters warms your core body temperature, producing a cleaner, healthier sweat while lowering blood pressure, and maintaining heart health.
  • The natural heat produced by the Spectrum Plus heaters is designed to achieve a more controlled hot climate much like a traditional sauna without the unbearable heat temperatures. This deeper penetration through sweating goes beyond the muscle and fat rather than a traditional or hot air sauna.  As a result, you’re able to work up the best possible sweat in the least amount of time.
  • Spectrum Plus heaters remove 17% more toxins such as cholesterol, fat-soluble toxins, toxic heavy metals, sulfuric acid, sodium, ammonia and uric acid.
  • Full Spectrum Sauna combination of long-wave Spectrum Carbon 360 infrared panels with UL-listed short-wave Spectrum Plus™ infrared panels. This combination provides higher temperatures, full body coverage, deeper penetration, and better experience than any other sauna.
  • Reap the benefits of a more natural pain relief remedy with every infrared sauna session.
  • Athletes can appreciate a faster muscle recovery with increased blood flow to the muscles, delivering more concentrated oxygen and creating more energy to heal.

Features

  • Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.
  • Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
  • Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
  • Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Designs full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
  • 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
  • Built-in LCD Wi-Fi touchscreen controller with bluetooth audio.
  • Audio with 6″ Hi-Fi speakers, 8mm tempered glass for the ultimate thermal retention.
  • Extra large two-tier bench system.
  • Low EMF sauna tested by a NASA award winning testing facility.
  • High Emissivity infrared heaters.

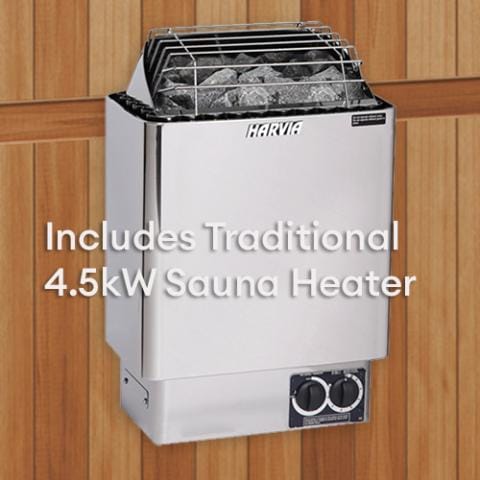

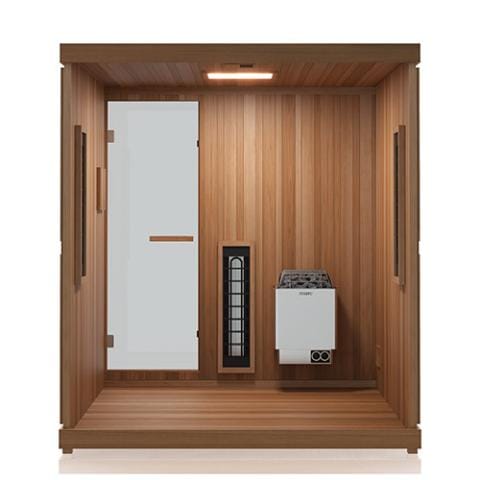

Harvia KIP Series B 4.5KW Sauna Heater

  • Wall-mounted
  • Stainless steel construction
  • 4.5kW
  • For sauna rooms from 100 to 210 cu. ft.
  • Requires a minimum of 50 lbs of stones (1 box-AC3000)
    • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
  • Built-In controls
  • Available in 240V/1PH operation or 208V/3Ph operation
  • Industrial grade, serviceable heating elements
  • Exceptionally large rock capacity
  • UL listed
  • Direct rock-to-heating element contact
  • Designed, engineered, and made in Finland
  • Dimensions: 16″W (406mm) x 11″D (279mm) x 24″H (609mm)
  • 2-Year Warranty (Consumer Use)
    • Manufacturer’s Note: Sauna heater stones are significant to the unit’s safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.

Includes

  • Bottom Panel
  • Top Panel
  • Back Panel
  • Front Panel
  • Left Panel
  • Right Panel
  • Glass Door
  • Bench Support
  • Bench Top
  • Heater Cable
  • Floor Cable
  • Screws
  • Power Supply Unit
  • Power Cable
  • Interior Heater Connections with Wood Cover
  • Door Handle (2 Screws)
  • Infrared Sauna Heater Panels
  • Harvia KIP Series B 4.5kW Sauna Heater
  • 1 Box of the Harvia AC3000 0-10cm Sauna Stones (44 lbs)
    • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
  • Spectrum LED Near Infrared Ceiling Lights Combined with Medical-Grade Spectrum Red Light Therapy
  • Controller 2.0, Built-In LCD Wi-Fi Touchscreen Control Panel with Bluetooth Audio
  • ETL Certification
  • Limited Warranty

Specifications

Model FD-5 Trinity™ XL
External Materials Thermo-Aspen (Thermal Plus™ kiln-treated aspen)
Interior Materials Clear “A” grade Western Canadian Red Cedar
Seats 3-4 (two tier bench)
Volts 240
Infrared Watts 3150
Amperage Infrared 15 | Harvia KIP45B 18.8 (separate circuit, electrician required)
Plug Type NEMA 6-15P (infrared); traditional heater hard-wired
Maximum Temperature Infrared 170F | Traditional 190F

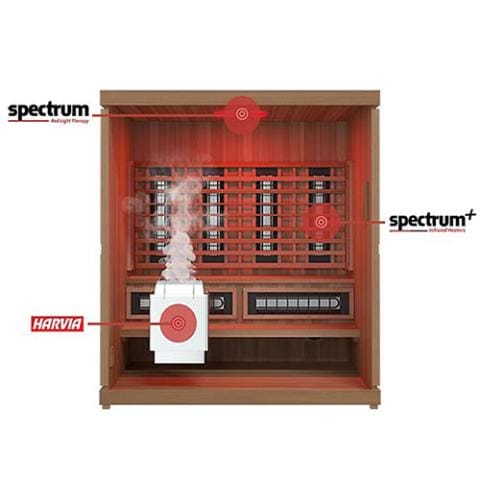

Infrared Heaters (4) Spectrum Plus™ dual wave (far and mid) on back wall, (2) under bench, (2) on each side wall, (1) on front wall
Traditional Heater Harvia KIP45B 4.5kW wall mounted heater
Insulation Fully insulated walls

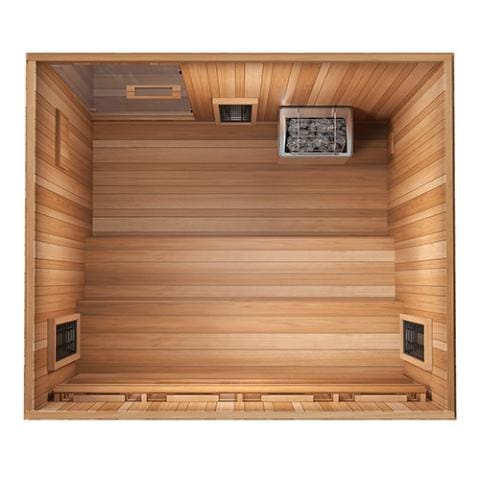

Interior Dimensions 70.5″W x 60.1″D x 75.2″H
Exterior Dimensions 74.8″W x 63.8″D x 83.1″H
Upper Bench 70.5″W x 20.1″D
Lower Bench 70.5″W x 15.7″D
Room Volume 184.4 cu. ft.
Door Dimensions 23.63″W x 68.75″H
Door Handle Dimensions 1.5″W x 13.25″H
Glass Thickness 8mm w/Gasket
Product Weight 575 lbs
Shipping Dimensions 36″W x 80″D
Shipping Weight 654 lbs w/48 lb Pallet
Model Harvia KIP45B (KIP-45-B1)
Kilowatt Rating (kW) 4.5kW
Primary Fuel Electric
Voltage 240V
Phase 1PH
Nominal Amps 18.8 Amps
Wire Size #10 AWG
Connection Hard-wired, built-in controls (electrician required)
Sauna Stones 1 box Harvia AC3000 included

Manual

Finnmark FD-5 Trinity XL Installation and Operation Manual (Aug 2026)

Harvia KIP45B Traditional Heater Manual

Spectrum Plus Infrared Heater Spec Sheet

Finnmark V2 WiFi Controller Manual

Finnmark Designs Sauna Warranty

Shipping

About This Delivery: This exceptional indoor Infrared Sanctuary requires delivery by a special appointment, and on a wooden pallet. The driver is responsible for “curbside delivery only” and will lower the items to ground level. Prior to shipping this product, we often contact customers to share shipment details. Our goal is to ensure your project’s success.
