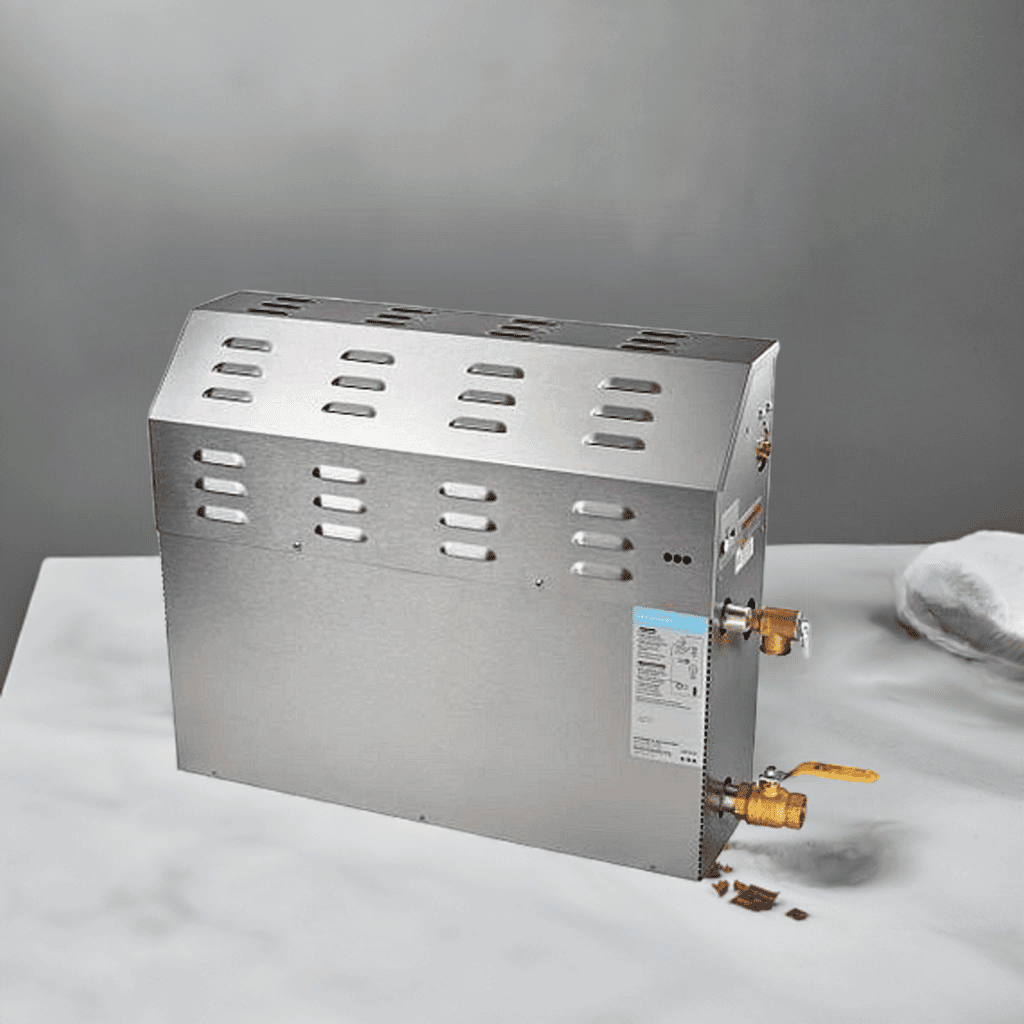

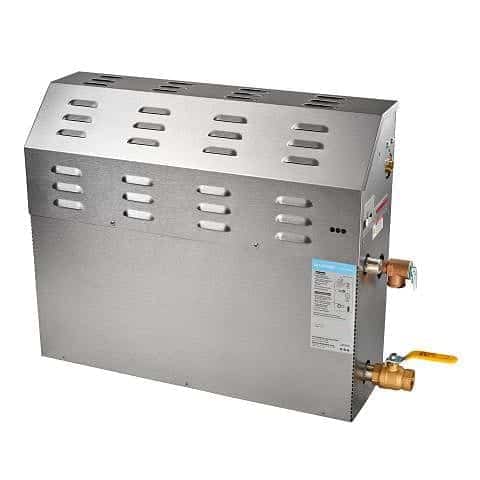

Mr Steam MX6 Steam Shower Generator 30kW MS MAX Series

Product price:	$5,180.00
Total options:
Order total:

Improving on the popular MS Super 6E, the MX6E 30kW home steam shower generator is engineered for residential steam rooms up to 964 adjusted cubic feet (ACF).

Required control package sold separately.

Note: The Mr. Steam MX6E replaces the discontinued Mr. Steam MS SUPER 6E generator

Improving on the popular MS Super 6E, the MX6E is engineered for home steam rooms up to 964 adjusted cubic feet (ACF).

The unit features a corrosion-resistant stainless-steel tank, professional-grade heating elements, durable electronic components, and a variety of other noteworthy features.

Mr. Steam MAX Series generators are engineered to provide long-lasting safety, reliability, and efficiency. The MX6E steam unit is equipped with a full-port drain-valve, water-level control system, and LED color light indicators for easy-to-read visual diagnostics.

The MX6E generator features intelligent steam bath technology and runs off an advanced microprocessor operating platform, making it perfect for large home and commercial steam bathing applications.

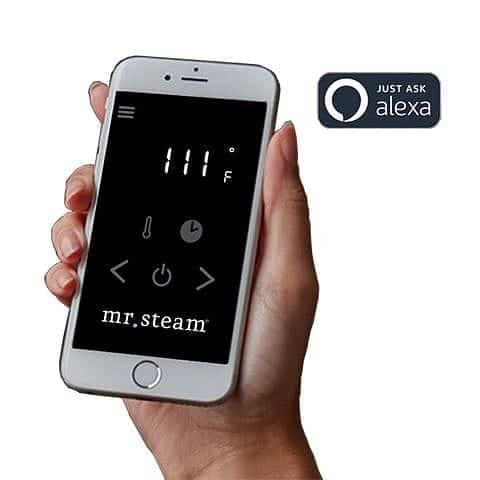

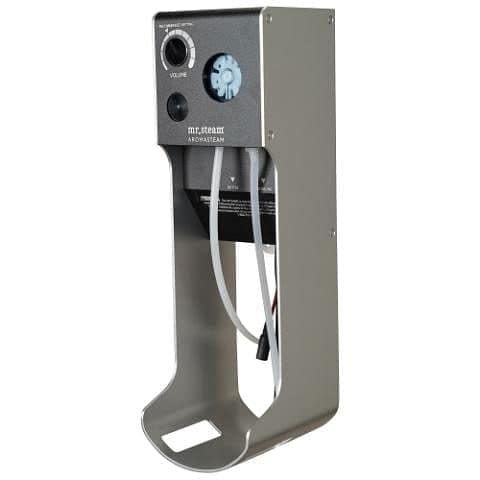

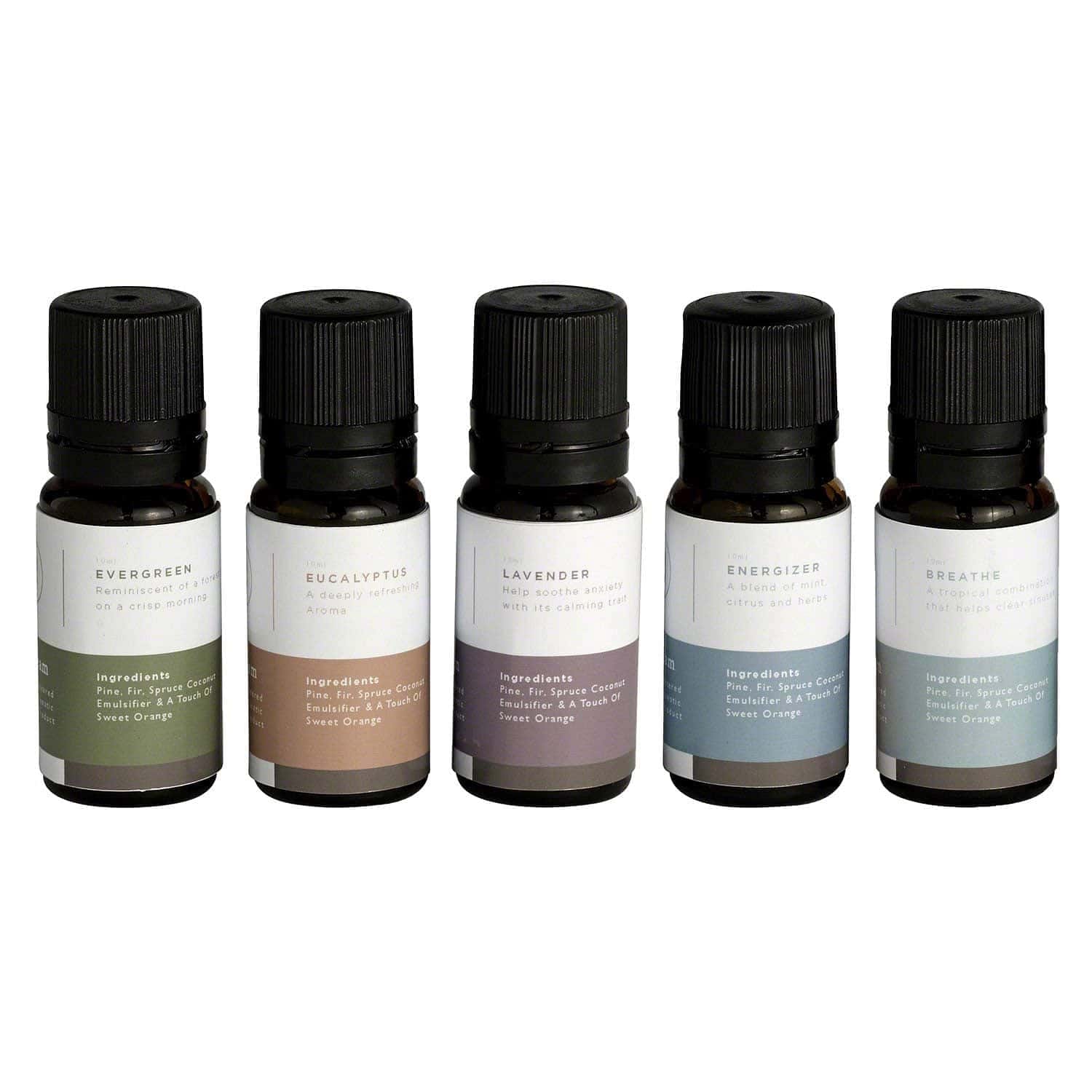

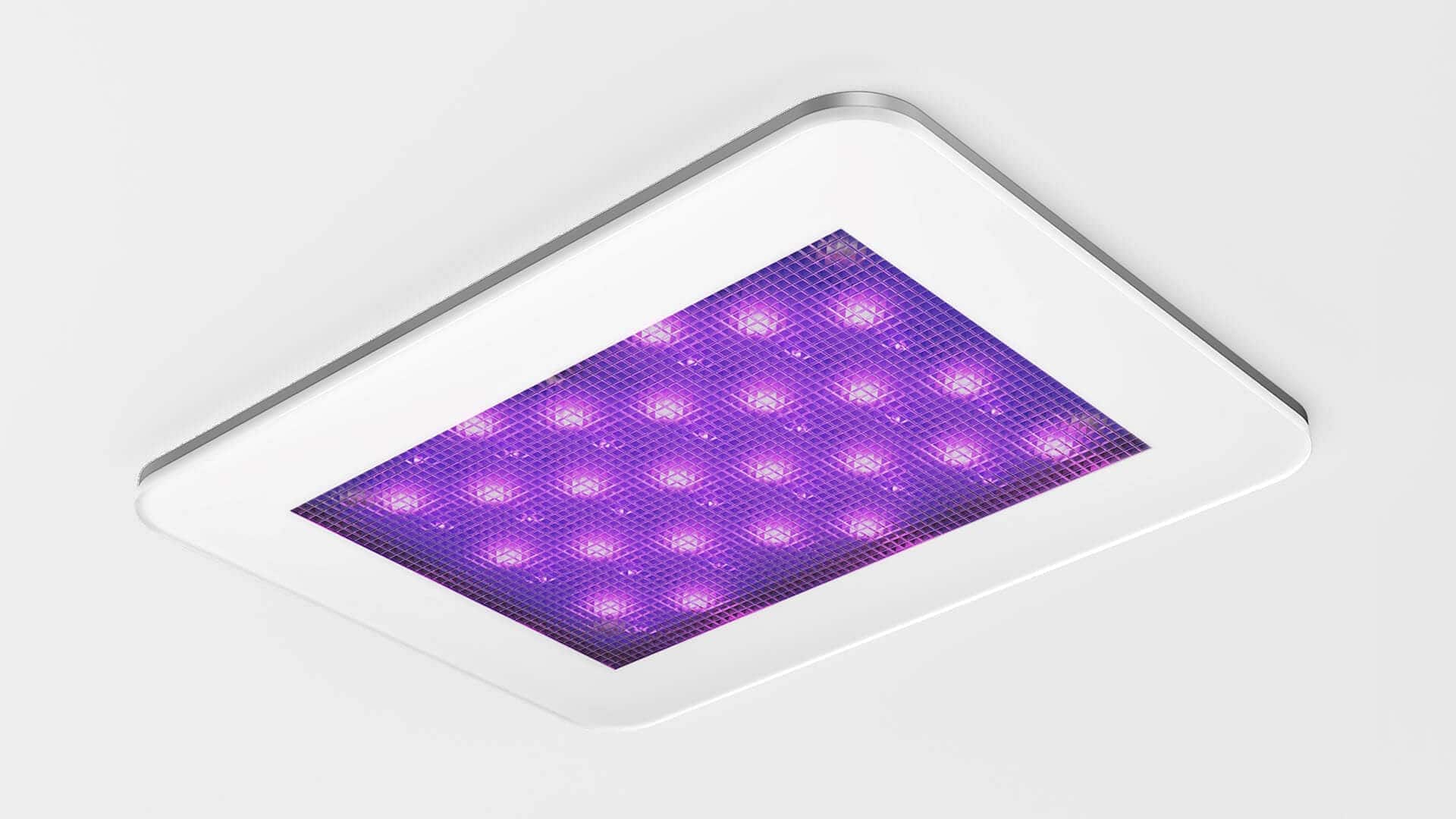

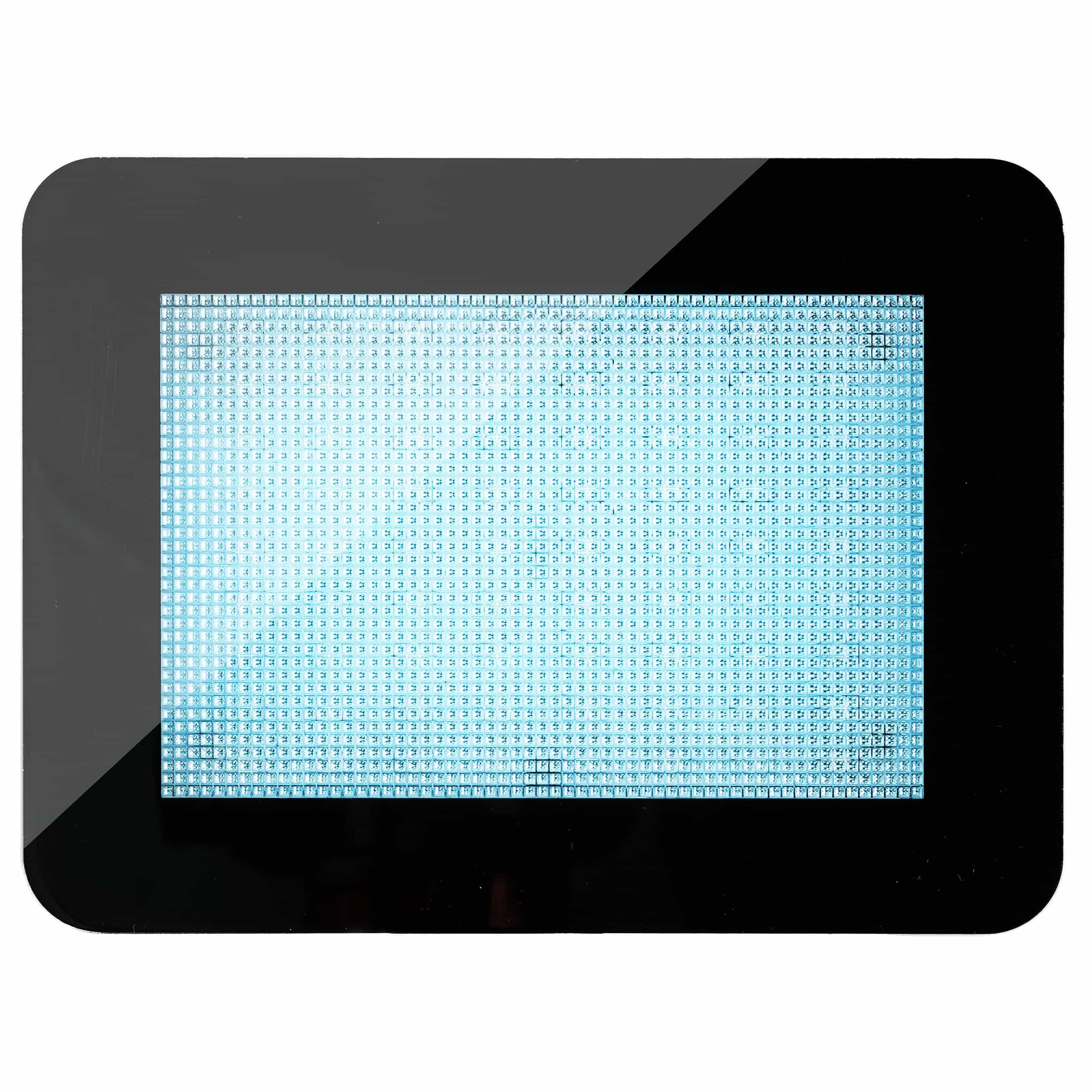

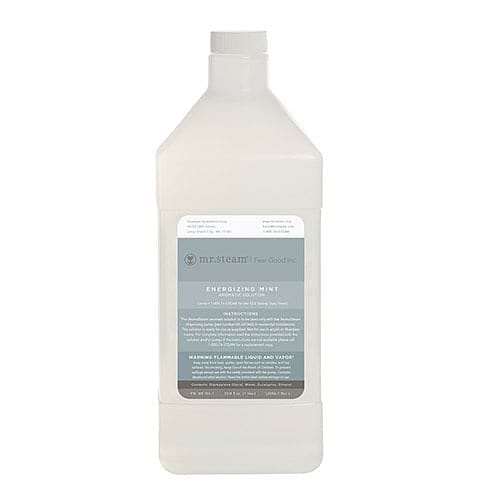

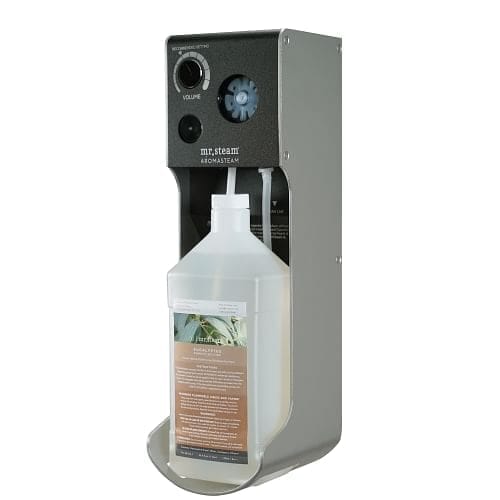

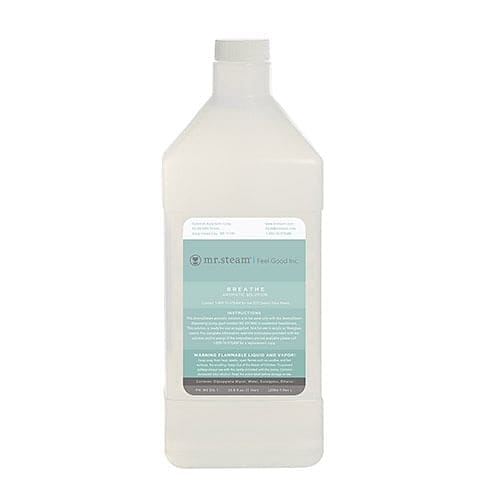

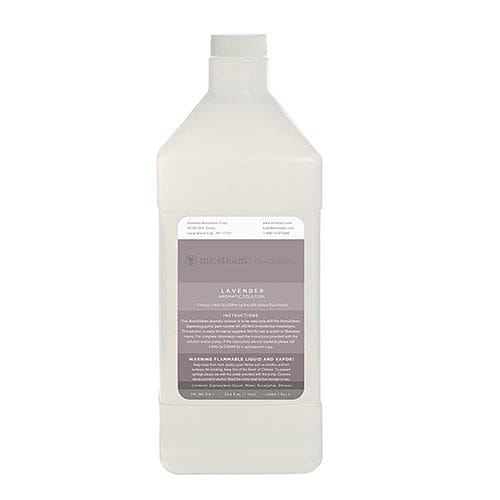

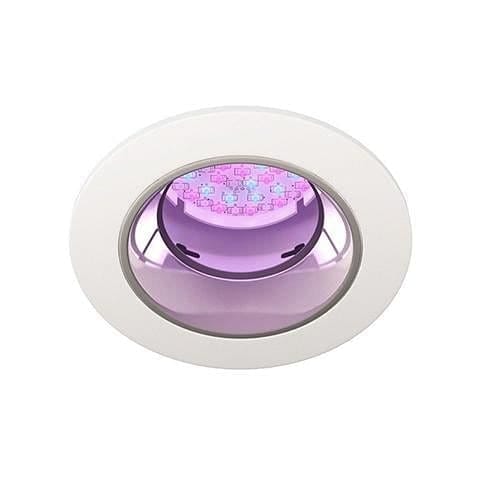

Mr. Steam MS-e generators include modular plug and play connections so that you may easily install steam shower accessories such as ChromaTherapy, AromaTherapy, and SteamLinx.

The optional Express Steam feature includes a built-in thermostat that maintains water temperature so that you may start steaming quickly.

The Mr. Steam MX6E 30kW steam bath generator is available in 240V and 208V single-phase (1PH) configurations.

The compact size of the generator allows the steam shower unit to be installed conveniently out of sight up to 60 feet away from the steam room. Typical installation locations include closets, vanities, and cabinets.

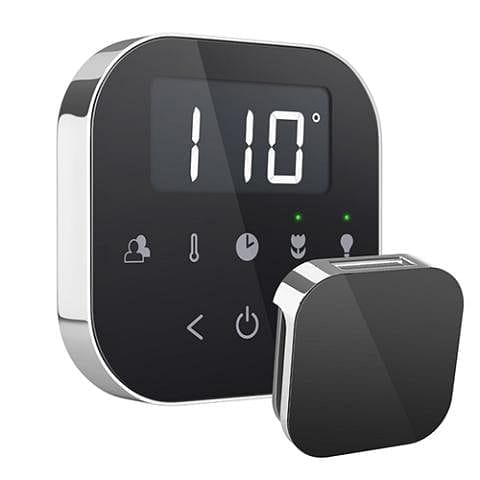

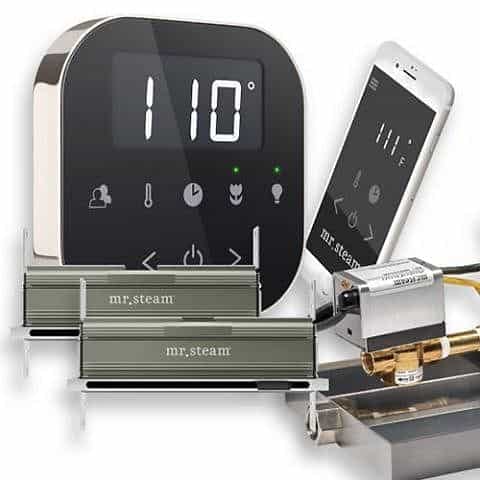

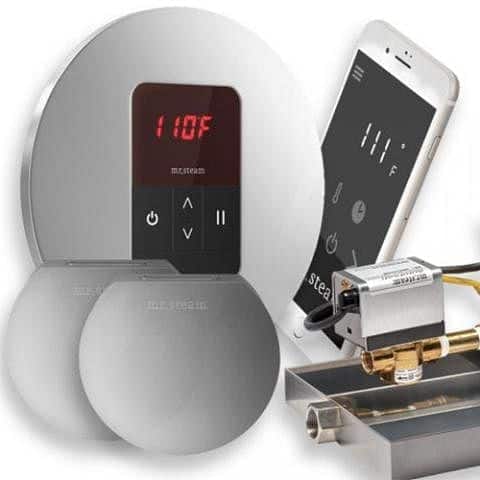

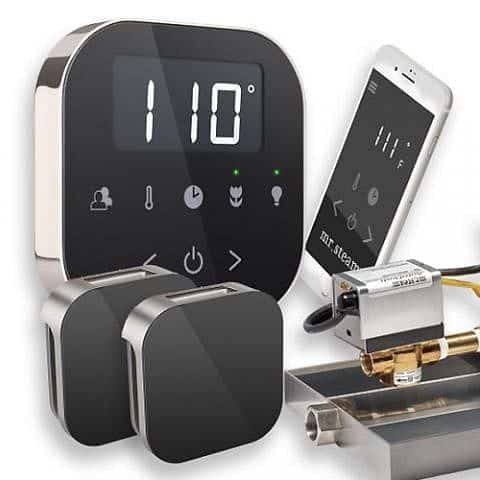

The MS MAX 6E generator is compatible with all Mr. Steam controls and control packages. Select the available control with features that best suit your bathing preferences.

We recommend the available Mr. Steam AutoFlush automatic draining system with your MX6E. The Auto Flush system automatically drains the generator tank to help prevent mineral build-up and ensure the unit continues to perform optimally.

The MX6E is fully serviceable and carries a limited lifetime warranty. Mr. Steam MS-e residential steam generators are US and Canadian UL listed and CE and NOM certified for your safety.

Features

For steam baths sized from 823 to 964 adjusted cubic feet
Available in 240V and 208V operation
Stainless Steel tank
Industrial-grade, serviceable heating element
MiniDIN control connections
Available Auto Drain automatic draining system
Durable electronic components
Electronic water-level control system
Low-voltage safety control circuits
Solid-state circuitry
Diagnostic LED Displays
Full port drain valve
ASME safety valve
UL/CUL/NOM/CE Listed

Includes

30kW Steam bath generator, 27-5/8″ x 20-3/4″ x 7-7/8″
Installation and operation manual
Limited warranty

Specifications

Export Table Data

Model	MX6E
Minimum Adjusted Cubic Feet	823
Maximum Adjusted Cubic Feet	964
Shipping Weight	70 lbs
Kilowatt Rating	30 KW
Electrical Specifications	Electrical Chart
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	3/4″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve PSIG	15 PSIG
Control “Rough In” Cut Out	1″
Generator Control Connection	8-Pin Mini-DIN Connector
Generator Control Cable	30′, 8 Conductor, 24 AWG, Shielded Cable
Width	27-5/8″
Depth	7-7/8″
Height	20-3/4″
