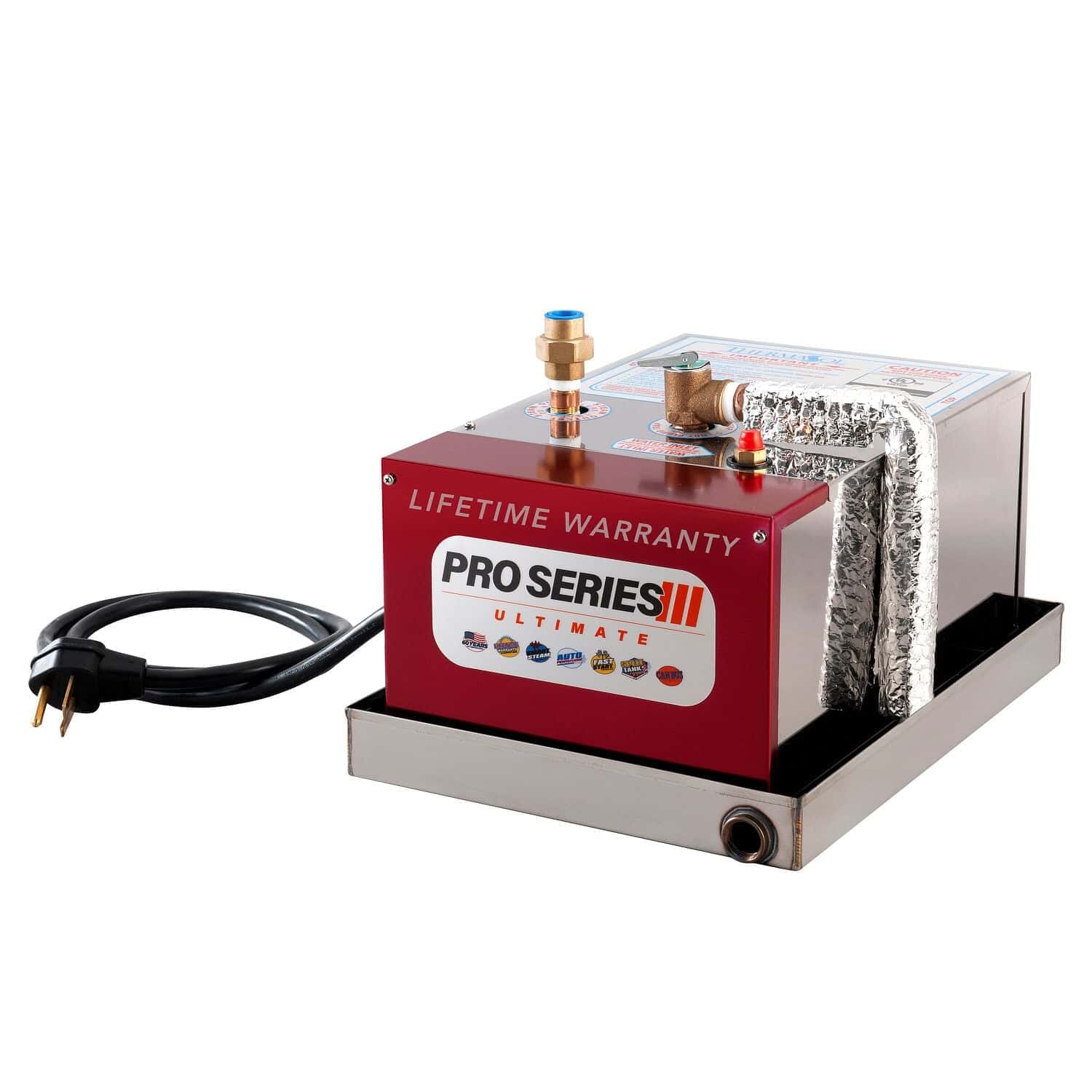

ThermaSol PROIII-395 Pro Series Ultimate Steam Generator- 11kw
Features
- Lifetime Warranty (EXCLUSIVE)
- Latest Digital Technology (EXCLUSIVE)
- CAN BUS Technology (EXCLUSIVE)
- Constant Steam at a Constant Rate (EXCLUSIVE)
- Split Tank Technology (EXCLUSIVE)
- FastStart Technology – Steam in seconds, not minutes!
- PowerFlush – The Most Advanced Cleaning System (EXCLUSIVE)
- Stainless Steel Drain Pan Included
- Smart Steam (PATENTED) – The Ultimate in Temperature Control and Comfort
Installation Manual
Installation Manual – PRO Series III Ultimate Steam Generator – 395
Specification Sheet
Specs – PRO Series III Ultimate Steam Generator – 395

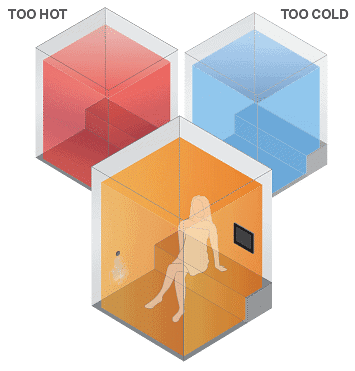

Smart Steam Technology
Available on ProSeries™️ III models only. SmartSteam produces the precise volume of steam required to maintain your desired room temperature while providing a quiet, relaxed experience.

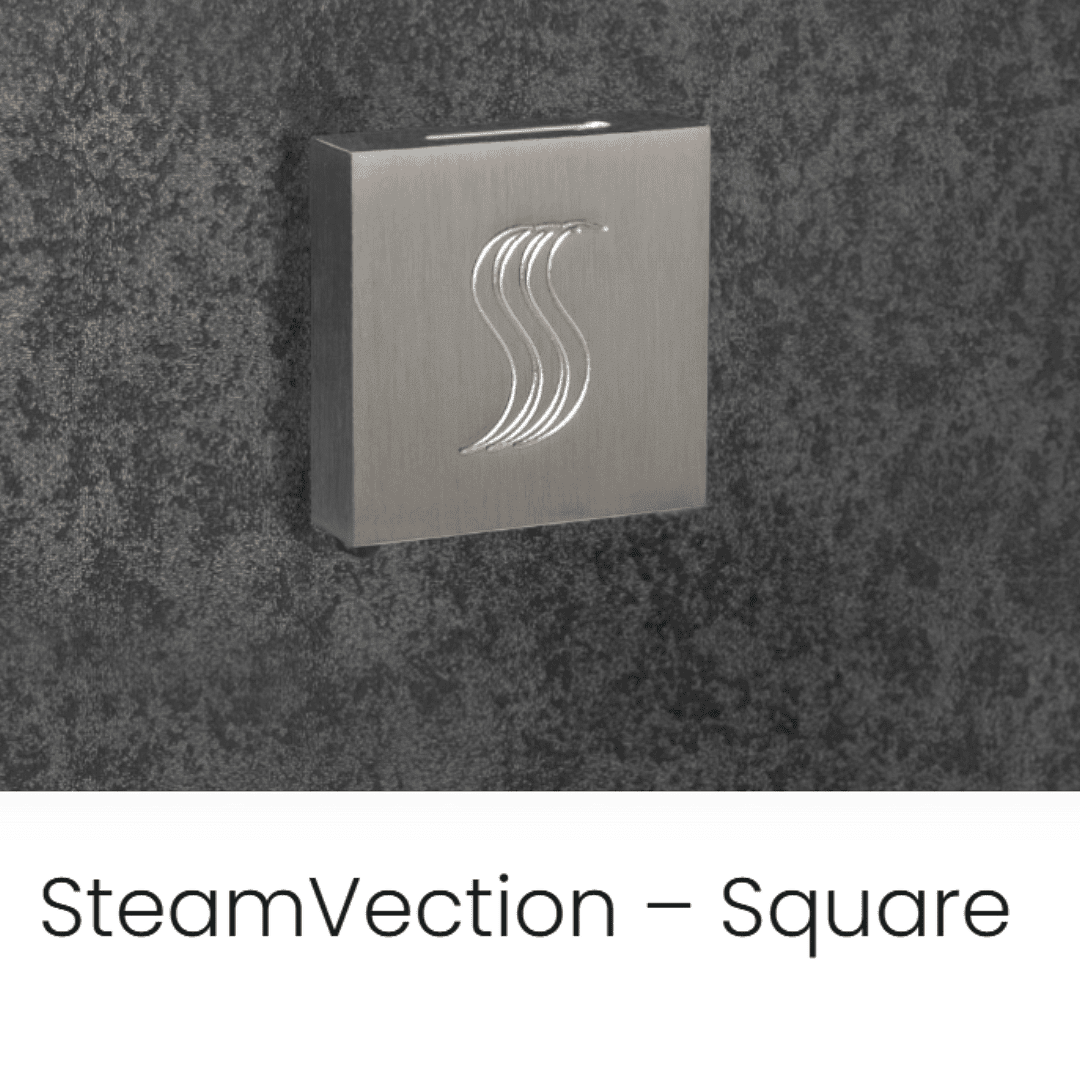

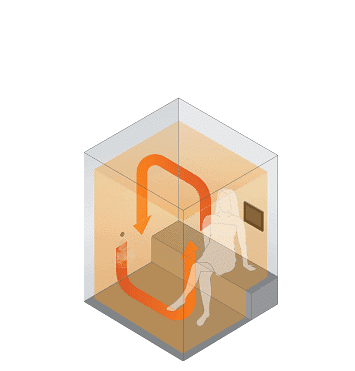

SteamVection Technology
State-of-the-art floor-to-ceiling temperature uniformity within the steam shower. No more variable heat ranges. Also allows the closest proximity to the outlet to give you more usable shower space.

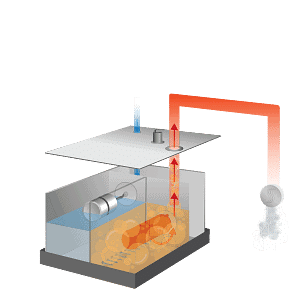

Split Tank Technology
Provides steam at a constant rate while ensuring trouble-free reliability! Water is pre-heated in the steam generator’s water reservoir and passes to the boiling side on demand.
Powerflush Cleaning
Finally, an effective way to automatically purge calcification build-up from the inner tank of the steam generator. ThermaSol’s exclusive Powerflush technology uses concentrated household water pressure with integrated speed slots to sweep the bottom of the internal tank, removing build-up effectively and efficiently.
LIFETIME WARRANTY
ThermaSol offers the best warranty program in the industry—a Lifetime Parts & Labor Warranty, no questions asked!
Features
- Constant steam flow
- Constant steam rate
- No steam lag
- No steam burst
- Smart Steam Technology (patented) – eliminates temperature fluctuations
- FastStart Technology (exclusive) – steam in seconds, not minutes
- PowerFlush Technology (exclusive) – pressurized inner tank system to remove sediment
- Works with HydroVive and Serenity systems
- Two-way digital CAN-bus Technology (exclusive)
- Split Tank longevity through design
- Includes stainless steel drain pan
- Pre-plumbed safety relief valve
- 1/2″ union to connect to steam line
- Braided stainless steel water connector
- 240V/1PH operation
- Superior heating elements-Incoloy low watt density
- Stainless Steel construction
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 18″ L x 23″W x 14″ H
- Lifetime Warranty
Includes
- Steam generator
- Stainless steel drain pan
- 3/8″ braided stainless steel hose & fitting
- In-line water screen kit
- Pre-plumbed safety relief valve
- Steamhead housing and cable kit
- 208-240 volt power cord (5ft)
- 50′ CAN-bus cable for the controller
- Installation instructions
- Static cling warning label
- Warranty
Specifications
| Model | PROIII-84 |
|---|---|
| Kilowatt Rating | 6 kW |
| Maximum Cubic Feet | 84 ACF |
| Amperage | 28 |
| Heater Weight | 44 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | NEMA 6-30P |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-140 |
|---|---|
| Kilowatt Rating | 8 kW |
| Maximum Cubic Feet | 140 ACF |
| Amperage | 37 |
| Heater Weight | 44 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | NEMA 6-50P |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-240 |
|---|---|
| Kilowatt Rating | 10 kW |
| Maximum Cubic Feet | 240 ACF |
| Amperage | 46 |
| Heater Weight | 44 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | NEMA 6-50P |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-395 |
|---|---|
| Kilowatt Rating | 11 kW |
| Maximum Cubic Feet | 395 ACF |
| Amperage | 48 |
| Heater Weight | 44 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | Hardwired |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-575 |
|---|---|
| Kilowatt Rating | 15 kW |
| Maximum Cubic Feet | 575 ACF |
| Amperage | 69 |
| Heater Weight | 48 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | Hardwired |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-750 |
|---|---|
| Kilowatt Rating | 20 kW |
| Maximum Cubic Feet | 750 ACF |
| Amperage | 92 |
| Heater Weight | 48 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | Hardwired |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
| Model | PROIII-1200 |
|---|---|
| Kilowatt Rating | 24 kW |
| Maximum Cubic Feet | 1200 ACF |
| Amperage | 110 |
| Heater Weight | 48 lbs |
| Water Inlet | 3/8″ Compression |
| Steam Outlet | 1/2″ NPT |
| Drain Pan | 3/4″ NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | Hardwired |
| Width | 18″ |
| Depth | 23″ |
| Height | 14″ |
