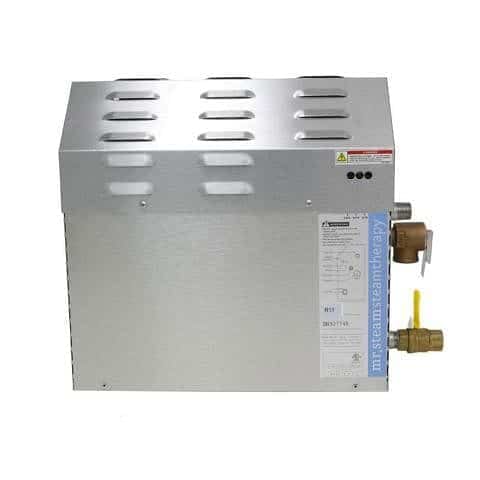

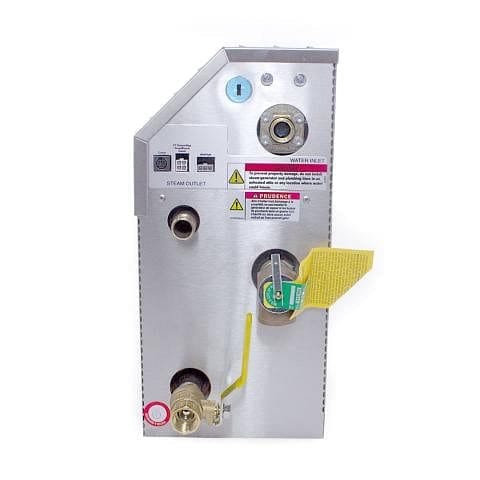

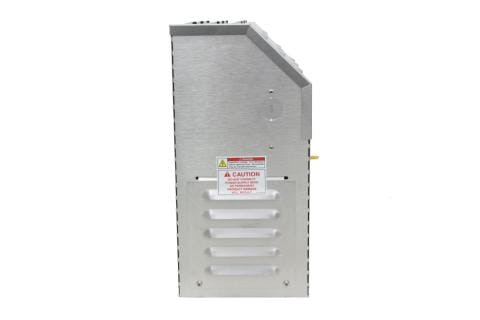

Mr Steam MS150E MS-E Series 6kW Steam Shower Generator

Product price:	$2,100.00
Total options:
Order total:

The Mr. Steam MS150E steam shower generator is designed for home steam rooms up to 107 adjusted cubic feet (ACF).

Required control package sold separately.

MS150E steam generator, call us, and we’ll match it, plus 10% of the difference!

The Mr. Steam MS150E is designed for home steam rooms up to 107 adjusted cubic feet (ACF).

The MS150E steam shower generator is engineered to provide years of clean, quiet, reliable, and efficient operation. The unit features the latest steam bath technology and an advanced microprocessor operating platform, making it the perfect choice for residential bathing applications.

The MS150E includes a corrosion-resistant stainless-steel tank, industrial-grade heating-elements, color LED light indicators for diagnostics, durable electronic components, a precision temperature probe, and a variety of other noteworthy features.

Mr. Steam’s AutoSteam water temperature equalization chamber comes standard with every MS E-series generator, ensuring a consistent steam production. The energy-efficient MS150E steam unit uses less than two gallons of water during a 20-minute bathing session, making it both eco-conscious and economical.

The compact size of the MS150E generator, about the size of a briefcase, allows the unit to be installed conveniently out of sight. The generator can be installed up to 60 feet away from the steam room in closets, cabinets, vanities, and other similar locations. The unit is perfect for any home steam shower kit.

The optional Express Steam feature is equipped with a built-in thermostat that maintains the water temperature so that you may start steaming quickly.

The Mr. Steam MS150E 6kW steam generator is available in 208V (MS150EB1) and 240V (MS150EC1) single-phase (1PH) configurations.

Mr. Steam MS generators are compatible with any Mr. Steam control or control package. Controls allow you to adjust features such as duration and temperature of the steam shower. Select the available control with features that best suit your preferences.

We recommend the available Mr. Steam AutoFlush automatic drain system with your MS150E. The auto drain system automatically cleans the generator tank after each bathing session to help prolong the life and ensure the optimal performance from the unit.

The Mr. Steam MS 150-E steam bath generator is fully serviceable and carries a limited lifetime warranty. MS-E Series steam shower units are US and Canadian UL listed and CE and NOM certified for your safety.

All MrSteam generators are designed, engineered, and crafted in the USA.

Features

For steam baths sized from 72 to 107 adjusted cubic feet
Available in 240V and 208V operation
Stainless Steel tank
Industrial-grade, serviceable heating element

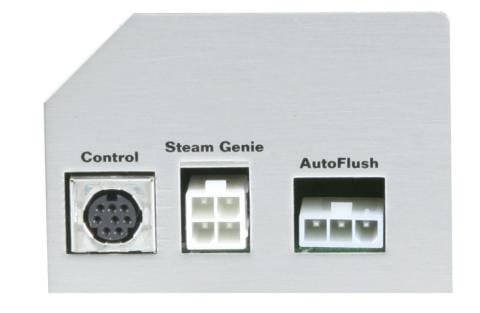

MiniDIN control connections
Available Auto Drain automatic draining system
Durable electronic components
Electronic water-level control system
Low-voltage safety control circuits
Solid-state circuitry
Diagnostic LED Displays
Full port drain valve
ASME safety valve
UL/CUL/NOM/CE Listed

Includes

6kW Steam bath generator, 14-1/2″L x 6-3/4″W x 14-3/4″H
Installation and operation manual
Limited warranty

Specifications

Export Table Data

Model	MS 150E
Minimum Adjusted Cubic Feet	72
Maximum Adjusted Cubic Feet	107
Shipping Weight (Lbs.)	30 lbs
Kilowatt Rating (KW)	6kW
Electrical Specifications	(refer to Electrical chart)
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	1/2″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1/2″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve PSIG	15 PSIG
Control “Rough In” Cut Out	1″
Generator Control Connection	8-Pin Mini-DIN Connector
Generator Control Cable	30′, 8 Conductor, 24 AWG, Shielded Cable
Width	14-1/2″
Depth	6-3/4″
Height	14-3/4″
