Mr Steam CT Day Spa Package 12 12kW CT Steam Generator, iTempoPlus, Aroma Steamhead, CT SteamStop, AutoFlush w/Pan

$5,211.00

✓ Free Shipping US ($500 Savings)
✓ No Sales Tax
✓ 100% Price Match Guarantee

Authorized Dealer –Full Warranty Included

Voltage

The Mr.Steam CT12E Commercial Steam Shower Generator Package is designed for daily use in day spa steam rooms with dimensions up to 411 adjusted cubic feet (ACF). You get everything you need to create the perfect steam experience with the combination of a 12kW Generator, iTempoPlus Control, AromaSteam Steamhead, CT SteamStop Control, AutoFlush System, and a Condensation Pan. The result is a touchpoint experience that becomes memorable for your customers, venue, and management

The Mr.Steam CT12E Commercial Steam Shower Generator Package is equipped with the latest technology, perfect for any resort or day spa steam shower. The Express Steam features a built-in thermostat that maintains water temperature so your spa members can start steaming quickly.

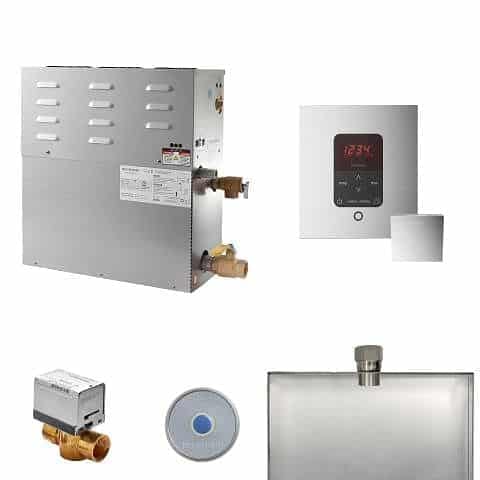

You get everything you need to create the perfect steam experience with the combination of a 12kW Generator, iTempoPlus Control, AromaSteam Steamhead, CT SteamStop Control, AutoFlush System, and a Condensation Pan.

The iTempoPlus Control allows for control of important steam room functionality such as duration, temperature, and on/off. iTempo controls can be installed inside or outside of the room. It comes with a matching Aroma Designer Steamhead that disperses steam evenly and efficiently.

The CT SteamStop Control allows bathers to turn the generator on/off.

The AutoFlush Automatic Draining System automatically drains the generator tank to help prevent harmful calcification and to ensure the longevity of the unit.

The CT12E day spa generator is available in 240V and 208V configurations.

With a water usage of 1.6 gallons during a 20-minute steam bath session, this day spa generator makes it both eco-conscious and economical.

The Mr.Steam CT day spa generators carry a limited lifetime warranty and are fully serviceable. All Mr.Steam commercial steam shower units are designed, engineered, and assembled in America.

Features

CT Day Spa 12kW Generator

Industrial grade and serviceable heating element
Unitized stainless steel reservoir
Durable electronic components
Round mini-DIN control connections
Electronic water-level system
Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
MSTS temperature sensor allows for temperature adjustment from remote control location
Low voltage safety control circuits
Built-in 24V circuits
ASME safety valve and full port drain valve
UL/cUL listed

iTempoPlus Control

Provides control of the steamroom by the owner/operator from outside the steamroom
Programmable temperature and time settings allow the owner/operator to customize and enhance the steam bathing experience for each bather
Standard with digital display and ergonomic soft-touch keypad with Chroma, Aroma, and programmable memory settings
Quick-responding temperature sensor maintains temperature within the steamroom
Solid brass cover for durable finish and quality
Digital readout display
Preset 60-minute time cycle
On/Off and pause modes
Soft touch keypad
Inside or outside the steam/shower enclosure installation
Low voltage operation
Displays troubleshooting codes
Square design
Polished Chrome finish

AromaSteam Steamhead

Designed to maintain cooler surface temperatures with improved steam flow and quieter infusion of aromatic oil into the steam for an enhanced steam room experience
Solid brass for superior performance and finish
Quieter operation
Low profile and sleek design

CT SteamStop Control

On/Off operation
Low profile
Inside the steam/shower enclosure installation
Low voltage operation
Polished Chrome Trim finish

AutoFlush System

Automatically and electronically drains generator after use and refills tank with fresh water for “Clean Steam…Every time!”
Improves performance and lengthens system life
Efficiently removes accumulated sediment
Simple plug-and-play connection
Full 1″ port design
24V AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
Two position, normally open
Brass valve body with 1/2″ NPT connections
2-pin integral electrical lead with “plug-in” electrical connection
Gravity drain

Condensation Pan

Galvanized sheet metal construction
Integral 3/4″ drain copper fitting

Includes

CT Day Spa 12kW Generator
iTempoPlus Control in Polished Chrome (Standard)
Aroma Designer Steamhead in Polished Chrome (Standard)
CT SteamStop On/Off Control (Chrome Trim Only)
AutoFlush System
Condensation Pan
Express Steam (Factory Installed)
MSTS In-Room Temperature Sensor, 30′ Long
Mini-DIN Control Cable, 30′ Long
3-Pin Control Cable, 30′ Long
RTV Silicone Sealant, .5 oz Tube
Installation and Operation Manual
UL/cUL Listed and CE Approved
Limited Warranty

Specifications

Model	CT12EC1-PC
Kilowatt Rating	12kW
Minimum Adjusted Cubic Feet	258
Maximum Adjusted Cubic Feet	411
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	1/2″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve PSIG	15 PSIG
Length	17″
Depth	7 7/8″
Height	18 1/2″
Shipping Weight	60 lbs

iTempoPlus Control
Length	4 1/2″
Depth	1 1/4″
Height	5″

AromaSteam Steamhead
Length	3″
Depth	7/8″
Height	2 3/4″

CT SteamStop Control
Diameter	1 1/2″
Depth	1 7/8″

AutoFlush System
Length	6 3/8″
Depth	2 3/8″
Height	6 3/8″

Condensation Pan
Length	9″
Depth	1 1/2″
Height	25″
