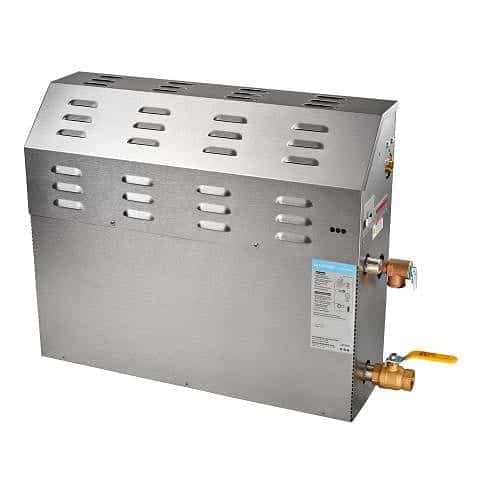

Mr. Steam MX5E 24kW Home Steam Shower Generator

Superior Design and Performance

Improving on the popular MS Super 5E, the 24kW MX5E home steam shower generator is engineered for residential and day spa steam rooms up to 822 adjusted cubic feet (ACF). The required control package is sold separately.

Note: The Mr. Steam MX5E replaces the discontinued Mr. Steam MS SUPER 5E generator.

Key Features and Specifications

Full-port drain valve
ASME safety valve
Electronic water-level control system
LED color light indicators for easy-to-read visual diagnostics

High-Quality Construction and Durability

Constructed of surgical-quality stainless steel throughout, the MX5E generator offers long-lasting strength and durability. The unit is equipped with durable electronic components and operates on an advanced microprocessor platform, making it ideal for large residential and commercial bathing applications.

Modular Design with Plug and Play Options

The MS MAX Series generators feature a modular Plug and Play design, allowing you to easily add steam shower accessories such as ChromaTherapy, SteamLinx, and AromaTherapy.

Versatile Installation and Compact Size

The Mr. Steam MX5E 24kW steam generator is available in 208V and 240V single-phase (1PH) configurations. Its compact size, about the size of a briefcase, allows the unit to be installed conveniently out of sight, up to 60 feet away from the steam room.

Optional Express Steam Feature

The optional Express Steam feature includes a built-in thermostat that maintains water temperature for quick and efficient steam generation.

Recommended Accessories and Compatibility

The MX5E generator requires a control or control package for operation and is compatible with all Mr. Steam controls and the Steamlinx mobile application. We highly recommend the Mr. Steam AutoFlush automatic draining system to prevent harmful mineral build-up and ensure the best performance.

Safety, Serviceability, and Warranty

The MS MX5E steam bath generator is fully serviceable and carries a limited lifetime warranty. Mr. Steam generators are US and Canadian UL listed and CE and NOM certified for your safety.

Made in the USA

All Mr. Steam generators are designed, engineered, and constructed in the USA.

Features

For steam baths sized from 679 to 822 adjusted cubic feet
Available in 240V and 208V operation
Stainless Steel tank
Industrial-grade, serviceable heating element
MiniDIN control connections
Available Auto Drain automatic draining system
Durable electronic components
Electronic water-level control system
Low-voltage safety control circuits
Solid-state circuitry
Diagnostic LED Displays
Full port drain valve
ASME safety valve
UL/CUL/NOM/CE Listed

Includes

24kW Steam bath generator, 27-5/8″ x 20-3/4″ x 7-7/8″
Installation and operation manual
Limited warranty

Specifications

Export Table Data

Model	MX5E
Minimum Adjusted Cubic Feet	679
Maximum Adjusted Cubic Feet	822
Shipping Weight	67 lbs
Kilowatt Rating	24 KW
Electrical Specifications	Electrical Chart
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	3/4″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve PSIG	15 PSIG
Control “Rough In” Cut Out	1″
Generator Control Connection	8-Pin Mini-DIN Connector
Generator Control Cable	30′, 8 Conductor, 24 AWG, Shielded Cable
Width	27-5/8″
Depth	7-7/8″
Height	20-3/4″
