ThermaSol DS-250- Day Spa Series 12kW Steam Bath Generator
The ThermaSol DS-250 is a 12kW steam generator designed for day spas and hotels and can service up to 4 steam shower enclosures with combined dimensions of up to 1,000 adjusted cubic feet (ACF).

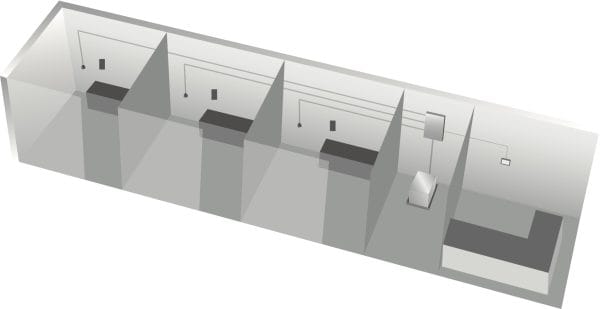

Commercial Day Spa units are small in size compared to ThermaSol’s larger commercial units and designed to provide steam independently or simultaneously to 1 to 4 separate rooms.
Includes:
- Day Spa Generator (can be plumbed up to 50 feet from steam room)
- Distribution System

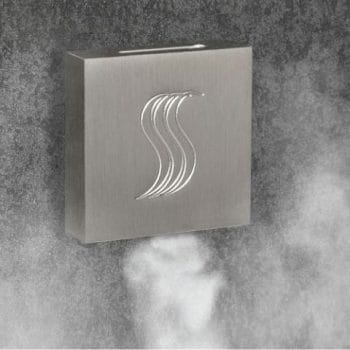

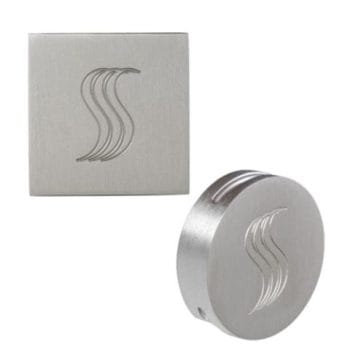

- Aroma Steamhead
- Front Desk Control Sentinel
- Room Control
Installation Manual
Installation Manual – Day Spa 4 Room System, 12kW-250
Installation Manual – Day Spa 3 Room System, 12kW-250
Installation Manual – Day Spa 2 Room System, 12kW-250
Specification Sheet
Specs – Day Spa 2 Room System, 12kW-250
Specs – Day Spa 3 Room System, 12kW-250
Specs – Day Spa 4 Room System, 12kW-250
Features
- Industrial grade, serviceable heating element
- Non-pressurized vessel
- Operates two, three, or four steam room environments
- Integral drain pan with 3/4″ NPT fitting
- Stainless steel design inside and out
- Durable electronic components
- Can be installed up to 50 feet from the room
- Hardware Kit provided
- Large capacity tank size
- CSA/CUL listed
- ASME safety valve
Includes
- 1 Generator
- In-Room Controls (2,3, or 4)
- Commercial Steamheads (2,3, or 4)
- Installation manual
- Limited Warranty
Specifications
| Model | DS-250 |
|---|---|
| Minimum Adjusted Cubic Feet | 450 |
| Maximum Adjusted Cubic Feet | 1000 |
| Kilowatt Rating (KW) | 12 kW |
| Shipping Weight | 46 lbs |
| Water Supply Connection | 3/8″ NPT |
| Generator Steam Line Connection | 1/2″ NPT |
| Steam Head Connection | 1/2″ NPT |
| Safety Relief Valve Connection | 3/4″ NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control “Rough In” Cut Out | 1-1/16″ |
| Generator Control Connection | 6 Pin, Snap-In Connector |
| Generator Control Cable | 50′, 6 Conductor, 22 AWG, Shielded Cable |
| Length | 18-3/4″ |
| Width | 13-3/4″ |
| Height | 16″ |
| Number of Rooms | 2, 3, or 4 (DS-2-250=2rooms, DS-3-250=3rooms, DS-4-250=4rooms) |
Technical
Installation Manual
Installation Manual – Day Spa 4 Room System, 12kW-250
Installation Manual – Day Spa 3 Room System, 12kW-250
Installation Manual – Day Spa 2 Room System, 12kW-250
Specification Sheet
Specs – Day Spa 2 Room System, 12kW-250
Specs – Day Spa 3 Room System, 12kW-250
Specs – Day Spa 4 Room System, 12kW-250
