Mr Steam MSSUPER3E Steam Shower Generator 15kW

Product price:	$3,605.00
Total options:
Order total:

The Mr. Steam MS Super3E 15kW home steam bath generator is engineered for residential steam showers up to 482 adjusted cubic feet (ACF).

Required control package sold separately.

The Mr. Steam MS Super 3E is engineered for home steam rooms up to 482 adjusted cubic feet (ACF).

The MS Super 3E steam shower generator is equipped with intelligent Steam Bath technology for years of ultra-efficient, safe, and reliable operation. Its advanced microprocessor operating platform makes it the perfect choice for residential and smaller commercial applications.
Constructed of surgical-quality stainless-steel throughout, the MS Super 3E provides long-lasting strength and durability. The steam unit features a precision temperature probe, industrial-grade heating elements, advanced water solenoid technology, LED color indicators for self-diagnostics, and a variety of other features.

The MS Super 3E generator is engineered to provide homeowners with the most consistent and reliable bathing experiences. The unit maintains a constant steam production by introducing just the right amount of steam through a proprietary dispersal chamber.

Mr. Steam MS e-Series generators use less than one gallon of water during a 20-minute bathing session, making them both economical and eco-friendly.

The compact size of the MS Super 3E steam shower unit allows the generator to be installed conveniently out of sight. The unit can be installed up to 60 feet away from the steam room in vanities, closets, and other similar locations.

The MS Super 3E 15kW steam generator is available in 208V (MSSUPER3EB1) and 240V (MSSUPER3EC1) single-phase (1PH) configurations.

The optional Express Steam feature features a built-in thermostat that maintains tank water temperature so that you may start steaming quickly.

The MrSteam MS Super 3E steam bath generator carries a limited lifetime warranty and is fully serviceable.

All Mr. Steam generators are designed, engineered, and crafted in the USA. MS-e Series residential steam shower units are US and Canadian UL listed and CE and NOM certified for your safety.

Features

For steam baths sized from 412 to 482 adjusted cubic feet
Available in 240V and 208V operation
Stainless Steel tank
Industrial-grade, serviceable heating element

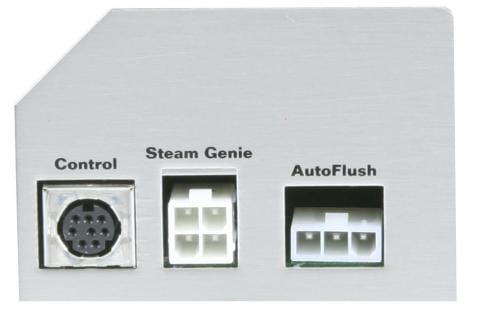

MiniDIN control connections
Available Auto Drain automatic draining system
Durable electronic components
Electronic water-level control system
Low-voltage safety control circuits
Solid-state circuitry
Diagnostic LED Displays
Full port drain valve
ASME safety valve
UL/CUL/NOM/CE Listed

Includes

15kW Steam bath generator, 17″L x 7-7/8″W x 18-3/4″H
Installation and operation manual
Limited warranty

Specifications

Model	MS SUPER-3E
Minimum Adjusted Cubic Feet	412
Maximum Adjusted Cubic Feet	482
Shipping Weight	40 lbs
Kilowatt Rating	15.0 KW
Electrical Specifications	(refer to Electrical chart)
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	1/2″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1/2″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve	15 PSIG
Control “Rough In” Cut Out	1″
Generator Control Connection	8-Pin Mini-DIN Connector
Generator Control Cable	30′, 8 Conductor, 24 AWG, Shielded Cable
Width	17″
Depth	7-7/8″
Height	18-1/2″
